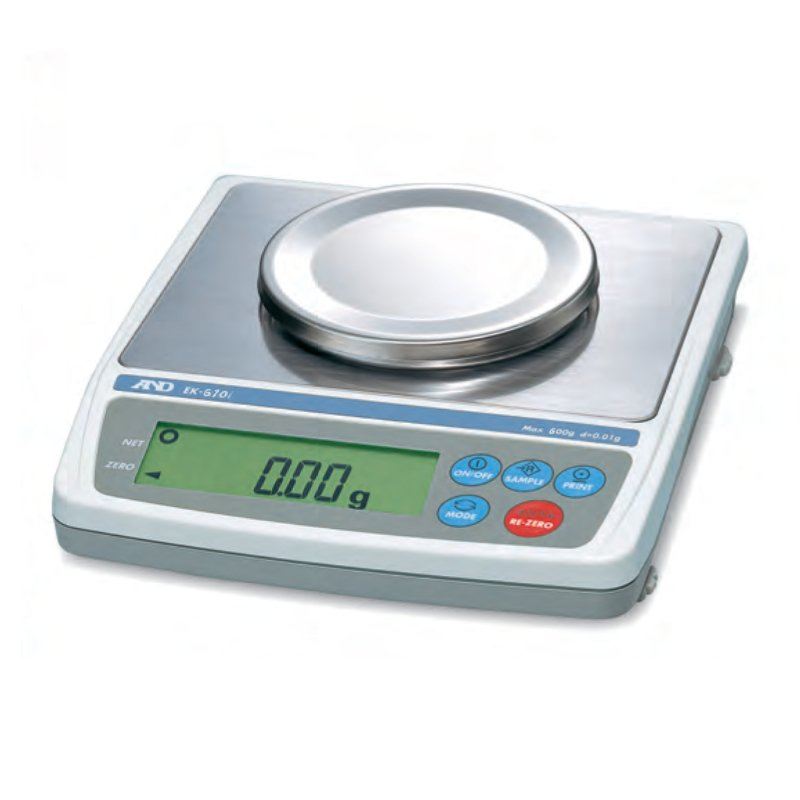

AND Weighing EK-610i | EK-i Series Compact Balance

AND Weighing EK-610i | EK-i Series Compact Balance

  • Handy and Affordable Balances that Fit Your Purpose in Anywhere!
  • Hygienic and chemically resistant stainless steel (SUS304) weighing pan
  • Adjustable response characteristics to help cope with the effect of drafts and vibrations
  • Multiple weighing units: g, oz, lb, ozt, ct, mom, dwt, grain (either tael, tola or Newton can be added upon request)
SKU: EK-610i Categories: ,
  • Description
  • Technical Data
  • Downloads

Description

AND Weighing Malaysia EK-610i | EK-i Series Compact Balance

Handy and Affordable Balances that Fit Your Purpose in Anywhere!

Features

  • Hygienic and chemically resistant stainless steel (SUS304) weighing pan
  • Adjustable response characteristics to help cope with the effect of drafts and vibrations
  • Multiple weighing units: g, oz, lb, ozt, ct, mom, dwt, grain (either tael, tola or Newton can be added upon request)
  • Security ring to prevent theft
  • RS-232C interface as standard
  • Counting mode with the Automatic Counting Accuracy Improvement (ACAI) function
  • Percent mode function
  • Comparator function with buzzer
  • Auto power off function
  • Overload protection
  • Security ring to prevent theft
  • Easy-to-install rechargeable battery (optional)



External Input / Output

  • RS-232C interface
  • Comparator relay output (optional)



Options

  • EKW-04i : Comparator relay output
  • EKW-09i : Rechargeable battery pack (Ni-MH)
  • EJ-12 : Carrying case

* EKW-04i and EKW-09i cannot be used at the same time.



Accessories

  • AD-1683 : Static eliminator
  • AD-1684A : Electrostatic field meter
  • AD-1687 : Weighing environment logger
  • AD-1688 : Weighing data logger
  • AD-1691 : Weighing environment analyzer
  • AD-8118C : Universal printer
  • AD-8127 : Compact printer
  • AD-8526 : Serial/Ethernet converter
  • AD-8527 : Quick USB adapter
  • AD-8920A : Remote display
  • AD-8922A : Remote controller
  • AX-USB-9P : Serial / USB converter
  • AX-KO2466-200 : RS-232C cable (9P-9P)
  • AX-3005824-5S : Protective cover (5 pcs)



For  more information : Visit AND Weighing website

Product List : AND Weighing Product List

Specifications

Capacity/ResolutionEK-610i
Gram (g)600 x 0.01
Decimal Ounce (av) (oz)21.164 x 0.001
Decimal Pound (av) (lb)1.3228 x 0.0001
Troy Ounce (ozt)19.290 x 0.001
Pennyweight (dwt)385.81 x 0.01
Carat (ct)3000.0 x 0.1
Momme (mom)160.000 x 0.005
Grain Unit (GN)9259.4 x 0.2
Tael (H.K General) (tl)15.8735 x 0.0005
Counting ModeMax. count60,000 pcs
Min. unit weight0.01 g
No. of samples5, 10, 25, 50 or 100 pieces
Percent ModeMin. div.0.1%
Min.100% weight1 g
Linearity±0.02 g
Repeatability/Std.Dev.0.01 g
Sensitivity Drift±20ppm/C(10°C~30°C/50°F~86°F)
Display Type7 segment LCD with backlight (character height 16mm)
Display Refresh10 times/second
Pan size (W) x (D)Ø110mm/4.3inches
Physical Dimensions (mm)190(W) x 218(D) x 55(H)
Physical Dimensions (inches)7.5(W) x 8.6(D) x 2.2(H)
Admissible Ambient Temperature-10C~40C/14F~104F, less than 85% R.H. (non-condensing)
Weight (approx.)1.1kg
Calibration Mass (default setting)600 g
PowerAC adapter or Ni-MH battery pack (option)
Standard AccessoriesManual, AC adapter
