Food Safety, Laboratory, Test & Measuring Instruments
DeFelsko Malaysia PosiTest OTL Oven Temperature Logger | Muser

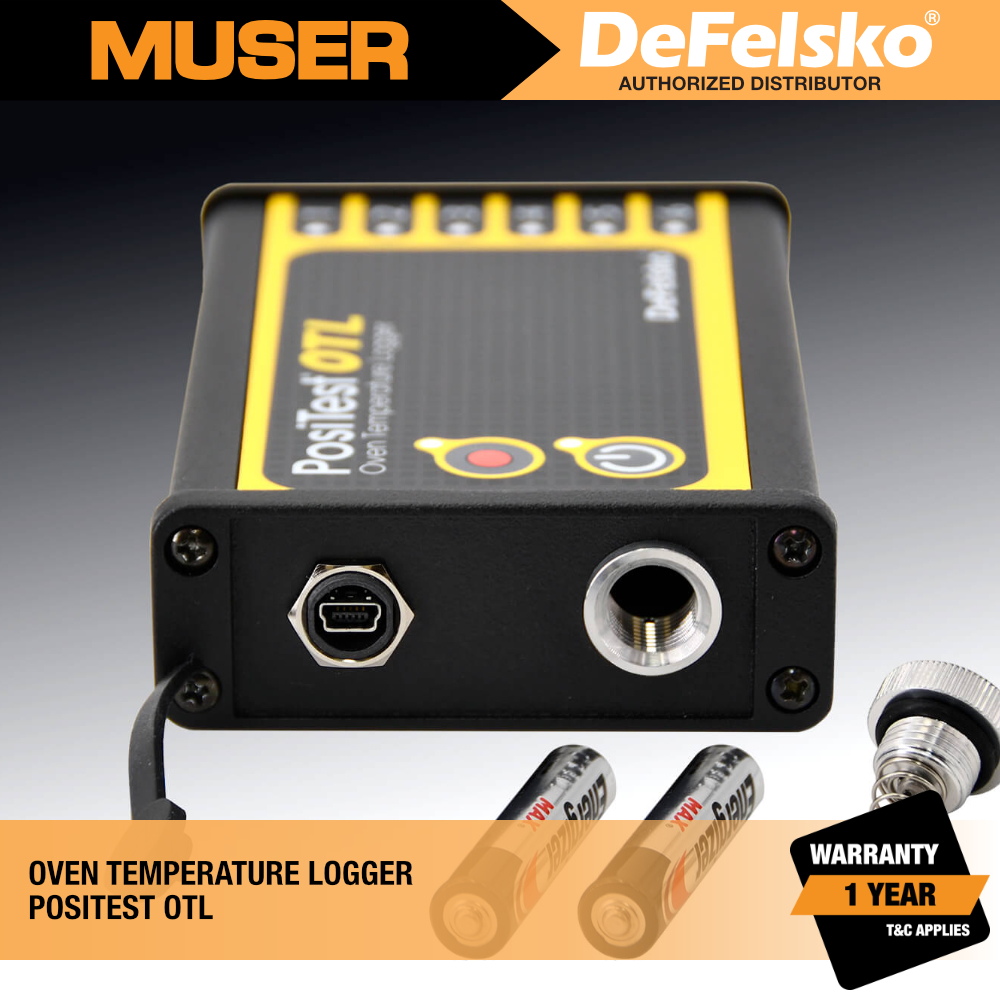

DeFelsko PosiTest OTL Oven Temperature Logger

  • Measures and records up to 40,000 datasets (240,000 readings)
  • 6 K-type thermocouple ports (channels)
  • Download, view, and analyze batch data using PosiSoft Desktop Software
SKU: PosiTest OTL Category: Tag:

DeFelsko Malaysia PosiTest OTL Oven Temperature Logger



  • Measures and records oven temperature profiles
  • Measures and records up to 40,000 datasets (240,000 readings) into 6 independent batches
  • High temperature stainless steel barrier box with fiberglass insulation for long run times at high temperatures. Contains no silicone.
  • 6 K-type thermocouple ports (channels)
  • NEW Cure Index compares supplier’s cure specifications to actual oven and part temperatures to ensure a proper cure
  • Download, view, and analyze batch data using PosiSoft Desktop Software. Export .CSV files for easy import into spreadsheets.
  • Wide variety of probes available with 1.8, 3.6, or 6 m (6′, 12′, or 20′) stainless steel braided cables (sold separately)

PosiTest OTL Features

  • Simple, easy-to-use interface
  • 6 K-type thermocouple ports (channels)
  • Measures and records up to 40,000 datasets (240,000 readings) into 6 independent batches
  • Records measurements every 2 seconds for up to 22 hours of recording time
  • Download, view, and analyze batch data using PosiSoft Desktop Software. Export .CSV files for easy import into spreadsheets.
  • NEW Cure Index compares supplier’s cure specifications to actual oven and part temperatures to ensure a proper cure
  • Bright LEDs indicate logger status at a glance
  • High temperature stainless steel barrier box with fiberglass insulation for long run times at high temperatures. Contains no silicone.
  • Certificate of calibration showing traceability to NIST included

PosiTest OTL Kits

 DeFelsko Malaysia PosiTest OTL Oven Temperature Logger

The PosiTest OTL is available in two configurations. The PosiTest OTL XT features an enhanced holder with heatsink for greater endurance at high temperatures.



DeFelsko Malaysia PosiTest OTL Oven Temperature Logger

PosiTest OTL Kit          PosiTest OTL XT Kit

TemperaturePosiTest OTL
(OTLKIT)
PosiTest OTL XT
(OTLKITXT)
150° C (302° F)90 minutes300 minutes
200° C (392° F)65 minutes200 minutes
250° C (482° F)50 minutes140 minutes
300° C (572° F)not recommended100 minutes

Temperature Probes for PosiTest OTL

  • Wide variety of surface and air temperature probes available with 1.8, 3.6, or 6 m (6′, 12′, or 20′) stainless steel braided cable (not included). Please contact us for details.
  • Certificate of Calibration showing traceability to NIST included

PosiSoft Desktop

DeFelsko PosiTest OTL PosiSoft Desktop

  • FREE powerful desktop software (PC/Mac) for downloading, viewing, printing, and storing measurement data.
  • Add supplier cure schedule specifications, batch annotations, label individual channels, set threshold temperatures, and compare datasets to reference batches.
  • Includes a customizable, templated PDF Report Generator. No internet connection required.



Technical Specifications

Channels6 K-type non-grounded thermocouples
Thermocouple Measurement Range-100 to 1000°C -148 to 1832°F
Logger Operating Temperature Range PosiTest OTL without Holder or Barrier Box0 to 70° C 32 to 158° F
Logger Accuracy±0.5° C ±0.9° F
Resolution0.1° C 0.1° F
Memory40,000 Datasets. Each Dataset consists of up to 6 channels.
Sample Interval2 seconds (Fixed) Maximum recording time is 22 hours
Power Source2 AAA batteries
Battery Life30 hours (recording time)
Size30.5 x 25.5 x 15 cm (12'' x 10'' x 6'')
Weight9 kg (20 lbs.) - includes the PosiTest OTL Holder, and Barrier Box. 11 kg (25 lbs.) - Holder XT
