Mitutoyo Malaysia CRYSTA-Apex V500 / V700 / V900 Standard CNC CMM

CRYSTA-Apex V500 / V700 / V900 | Description

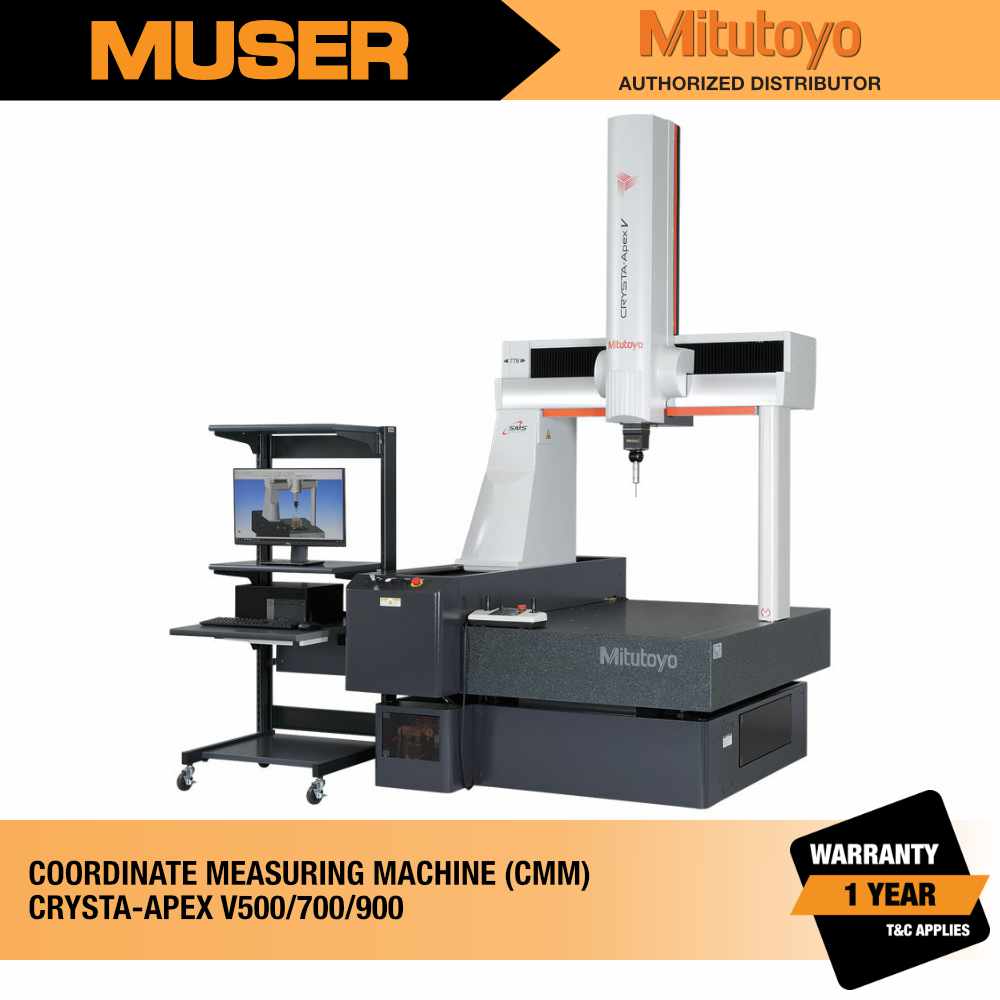

The CRYSTA-Apex V series is a new generation CNC CMM that delivers great versatility and speed while leveraging IoT technologies for smart factory opportunities. Available in a size range of 400mm to 2000mm (15.7″ to 78.7″), the CRYSTA-Apex V provides accuracy that is unmatched by any previous general purpose measuring machine for small to mid-sized workpieces.

CRYSTA-Apex V500 / V700 / V900 | Features

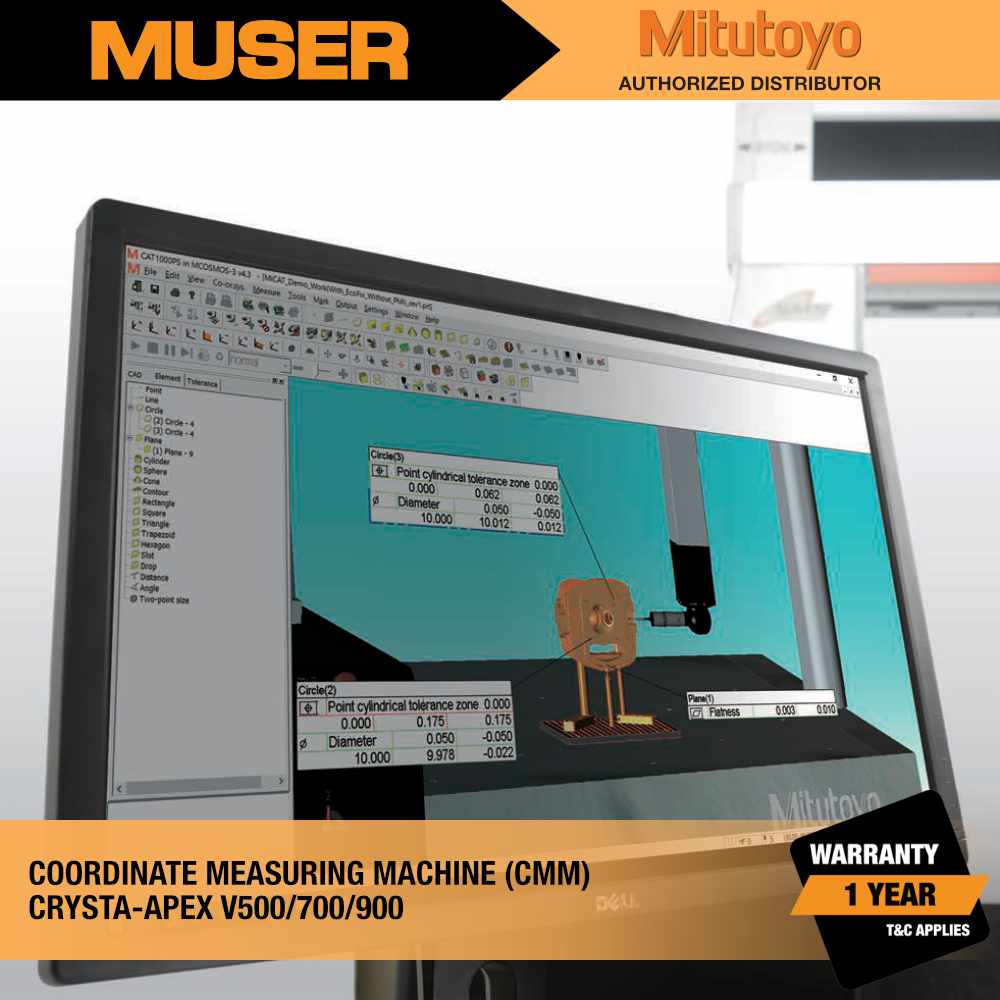

  • SMS (Smart Measuring System) – system for on-line monitoring and operational status of a measuring machine with data visualization to enable product quality improvement
  • Real-time CMM and workpiece temperature compensation (standard feature)

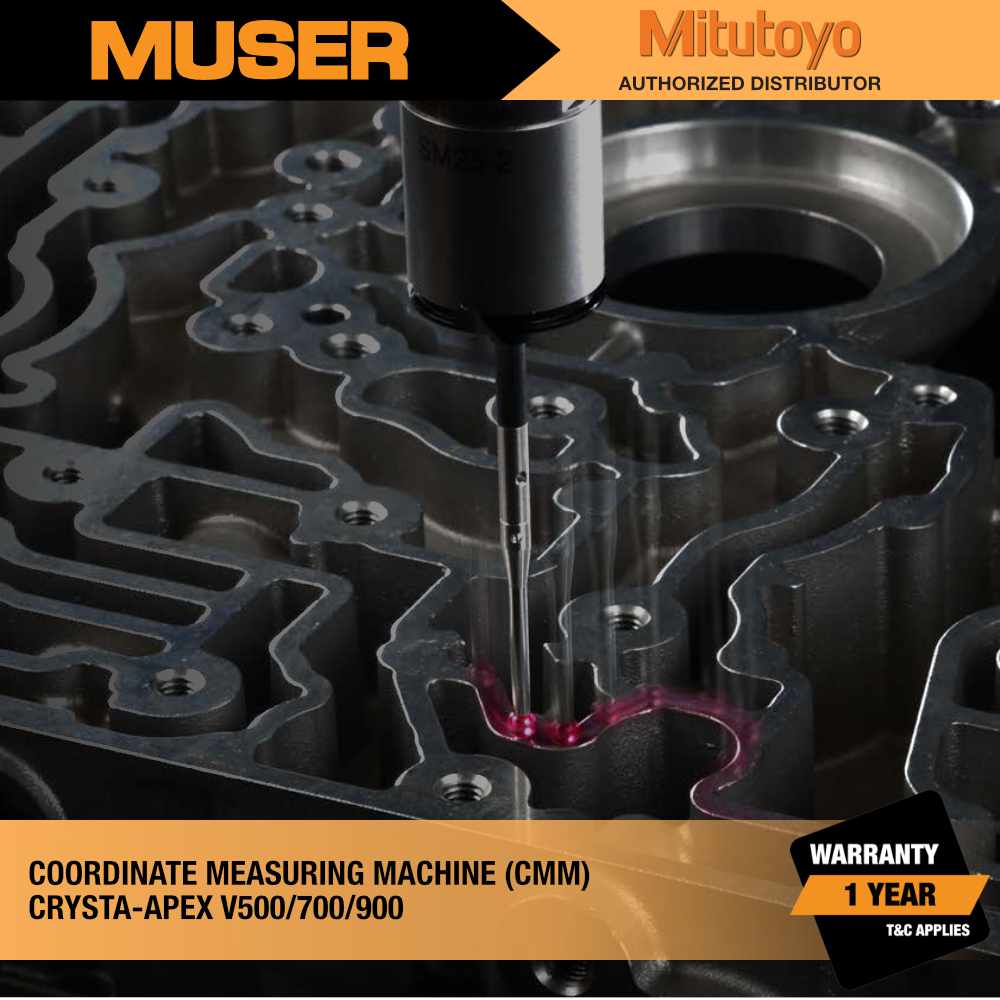

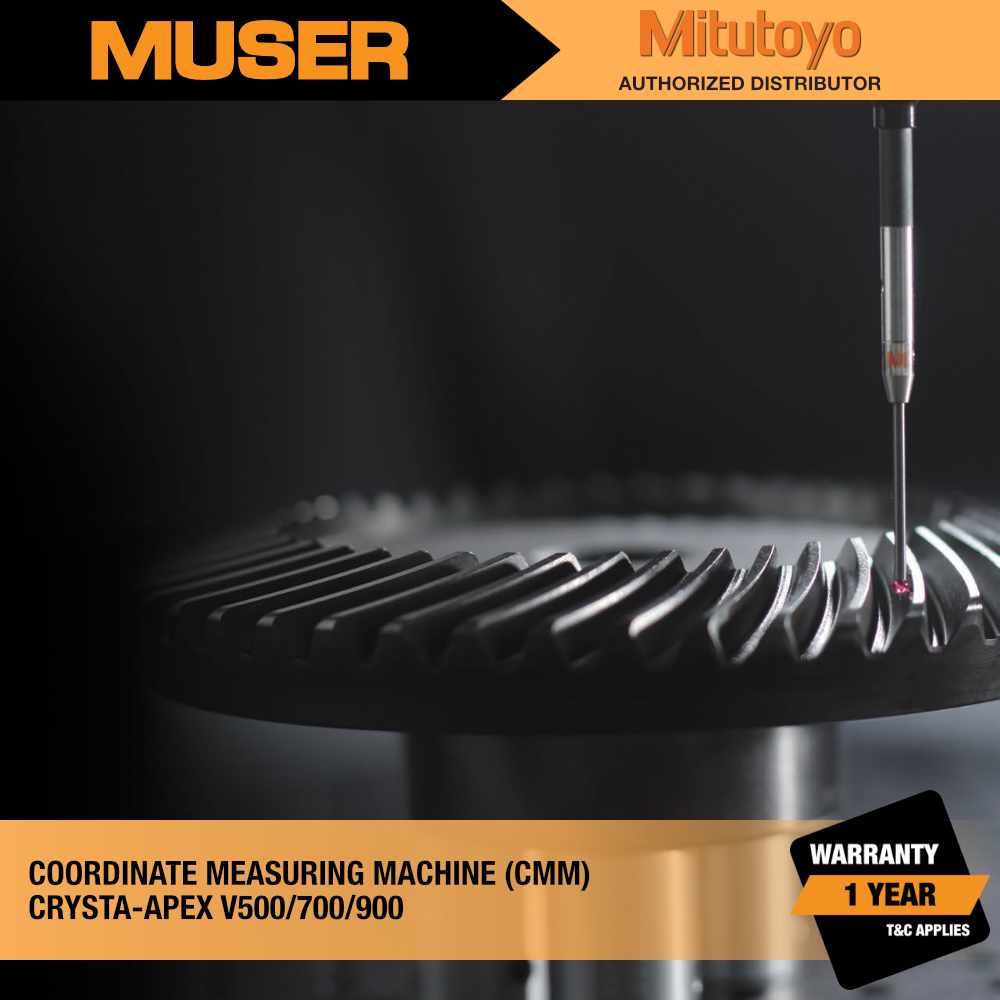

  • High-speed optimal path scanning with high-speed active scanning
  • Multi-sensor support with an array of contact and non-contact probes that includes tactile, scanning, laser, optical, surface finish measuring

CRYSTA-Apex V500 / V700 / V900 | Product Video

All Mitutoyo Products
Mitutoyo Website
Return Home
Parameter

Dimension

Technical Specifications

ModelCRYSTA-Apex V544 CRYSTA-Apex V574 CRYSTA-Apex V776 CRYSTA-Apex V7106
Measuring range X axis 500 mm700 mm
Y axis 400 mm700 mm700 mm1000 mm
Z axis 400 mm600 mm

ModelCRYSTA-Apex V9106 (Z600)/9108 (Z800) CRYSTA-Apex V9166 (Z600)/9168 (Z800) CRYSTA-Apex V9206 (Z600)/9208 (Z800)
Measuring range X axis 900 mm
Y axis 1000 mm1600 mm2000 mm
Z axis 600 mm/800 mm
Note: While the appearance of the natural stone measuring table varies according to the source, the high stability for which this material is known can always be relied upon.

CRYSTA-Apex V Series Accuracy (Unit: μm)

Series Probe used Length measurement error*1 ISO 10360-2: 2009
500/700/900 Series SP25ME0, MPE =1.7 + 3L/1000*2
*1 Specifications vary by configuration, size, and thermal environment. *2 L = Measuring length (unit: mm)
