Rheintacho A4-3200 | RT STROBE pocketLED T | 4,800 LUX

Rheintacho A4-3200 | RT STROBE pocketLED T | 4,800 LUX

  • With trigger interface
  • Max 300,000 FPM (flashes per minute)
SKU: A4-3200 Category:
  • Description
  • Technical Data
  • Downloads

Description

Rheintacho Malaysia A4-3200 | RT STROBE pocketLED T 4,800 LUX

Connect your RT STROBE pocketLED Twith the device or plant to be monitored via a trigger cable. Switching from internal to external triggering displays the units 1/min or Hz rather than FPM.

A wide variety of options for influencing the input signal before the flash is activated enables you to ensure that the flash will be activated in exactly the right position.

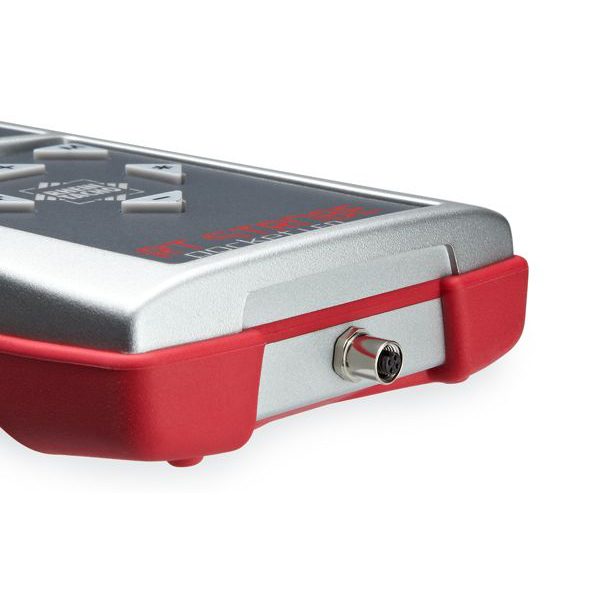

The trigger interface is designed as a combined input and output interface. The trigger output allows you to set a flash frequency in the stroboscope and transmit it as a trigger signal to an external device or machine.

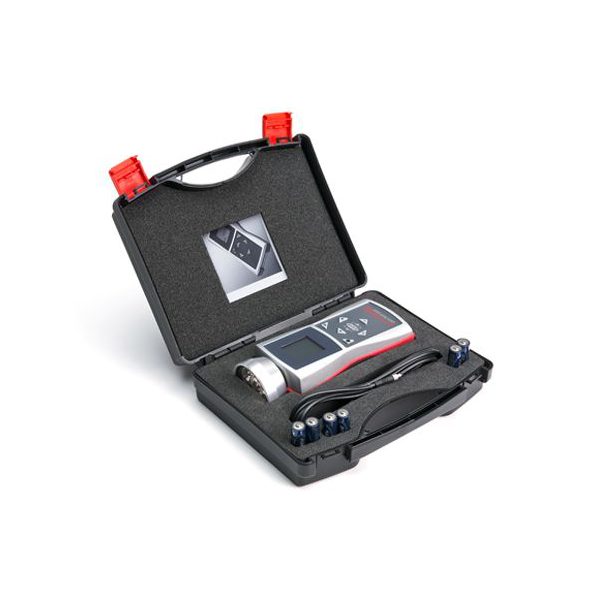

Scope of Delivery

A4-3200:

  • Portable LED stroboscope RT STROBE pocketLED T – with trigger interface
  • Cable with plug for trigger signal
  • Operating instructions
  • Calibration certificate
  • Batteries



Video Demo

Rheintacho Pocket Strobe LED / 01 Operate + 02 Frequency



Click here for our range of Rheintacho products!

Or visit Rheintacho website

Specifications

Frequency range30 … 300,000 FPM
Light intensity max.4,800 LUX @ 6,000 FPM / 30 cm
Flash durationadjustable
MaterialAluminium / ABS, heavy duty design
Dimensions191 x 82 x 60 mm
