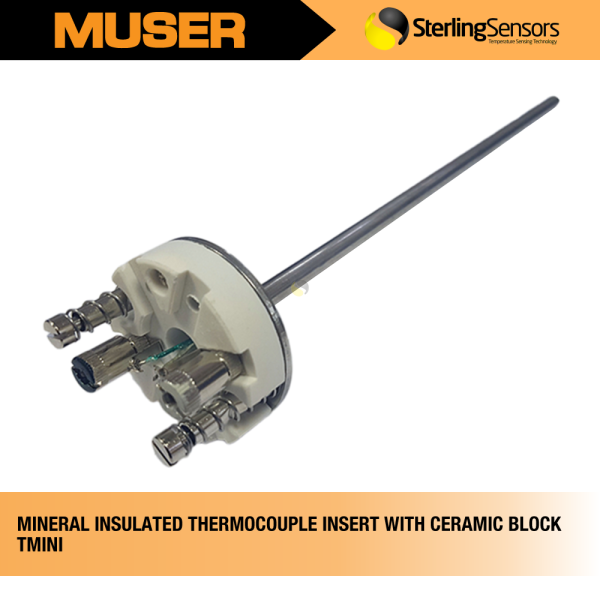

Sterling Sensors TMINI Mineral Insulated Thermocouple Insert with Ceramic Block
Features | TMINI Mineral Insulated Thermocouple
- Simple to replace for plant efficiency
- Spring loaded promotes good thermal contact
- Optional transmitter that replaces the ceramic terminal block
- Bespoke manufactured options
Description | TMINI Mineral Insulated Thermocouple
Spring loaded mineral insulated inserts for thermocouple assemblies to suit new or existing thermowells and pockets with a temperature sensing range of -200 to +900°C; designed for fast and simple replacement in existing applications.
This easily interchangeable mineral insulated thermocouple is used in thermowells or assemblies with terminal heads (Such as our mineral insulated thermocouple assembly) and can be replaced with minimal time and effort. It has a ceramic terminal block and spring loaded screws for good thermal contact and fast, reliable response.
The high quality probe uses an insulated sensing junction in thermocouple type K with class 1 accuracy. The Standard diameter is 6mm. We have a wide range of lengths available from stock and manufacture specifically to suit your application.
Applications | TMINI Mineral Insulated Thermocouple
- MRO Replacements
- Pipes & Vessells
- Optional transmitter that replaces the ceramic terminal block
- Bespoke manufactured options
