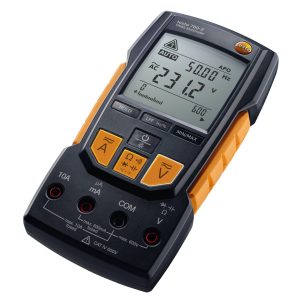

testo 760-3 | Digital Multimeter

testo 760-3 | Digital Multimeter

  • Easy, reliable work thanks to automatic measurement parameter detection
  • Comfortable, one-handed operation without any dial
  • Voltage range up to 1,000 V
  • Additional functions, such as true root mean square measurement – TRMS, low-pass filter and temperature adapter
SKU: 0590 7603 Category:
  • Description
  • Technical Data
  • Downloads

Description

testo Malaysia 760-3 | Digital Multimeter

  • Easy, reliable work thanks to automatic measurement parameter detection
  • Comfortable, one-handed operation without any dial
  • Voltage range up to 1,000 V
  • Additional functions, such as true root mean square measurement – TRMS, low-pass filter and temperature adapt

The testo 760-3 is the most high-performance model in Testo’s digital multimeter family. In addition to automatic detection of measurement parameters, it is characterized by a voltage measuring range of up to 1,000 V along with large measuring ranges for frequency and capacitance. The digital multimeter is therefore also suitable for industrial applications.



testo Malaysia 760-3 | Digital Multimeter | Product Description

The testo 760-3 digital multimeter is the multitasker for all important professionals in the electricity sector. It enables you to carry out both simple and demanding electrical measuring tasks more reliably than ever before. The testo 760-3 automatically detects the appropriate measurement parameter via the socket assignment and so prevents dangerous incorrect settings.

A voltage range of up to 1,000 V, a frequency range of up to 30 MHz and capacitance of up to 60,000 µF mean the testo 760-3 multimeter can also be used for industrial applications, such as troubleshooting in large electrical systems. And the integrated low-pass filter achieves more accurate measurement results on frequency converter controlled motors.

Temperatures can also be measured with this multimeter in addition to electrical parameters. You will need the clip-on type K thermocouple adapter and a temperature probe (both items can be ordered separately).



testo Malaysia 760-3 | Digital Multimeter | Delivery Scope

testo 760-3 TRMS multimeter, including batteries and 1 set of measuring cables.



testo Malaysia 760 | Digital Multimeter | Video Demo



View our range of testo products here!

Or visit testo website

Temperature – TC Type K (NiCr-Ni)
Measuring range-20 to +500 °C
Accuracy±1 °C (0 to +100 °C)
Resolution0.1 °C



General technical data
Dimensions167 x 85 x 45 mm
Operating temperature-10 to +50 °C
Protection classIP64
Warranty2 years
Storage temperature-15 to +60 °C
Weight340 g
Overvoltage CategoryCAT IV 600V; CAT III 1000V
AuthorizationsTÜV; CSA; CE



DC voltage
Measuring range / Resolution600 mV / 0.1 mV
6.000 V / 1 mV
60.00 V / 10 mV
600.0 V / 100 mV
1000 V / 1 V
Accuracy± (0.8 % of mv + 3 Digit)



AC voltage
Measuring range / Resolution600 mV / 0.1 mV
6.000 V / 1 mV
60.00 V / 10 mV
600.0 V / 100 mV
1000 V / 1 V
Accuracy± (0.8 % of mv + 3 Digit)



DC current
Measuring range / Resolution600 μA / 0.1 μA
6000 μA / 1 μA
60.00 mA / 10 μA
600.0 mA / 100 μA
6 A / 1 mA
10 A / 10 mA
Accuracy± (1.5 % of mv + 5 Digit)



AC current
Measuring range / Resolution600 μA / 0.1 μA
6000 μA / 1 μA
60.00 mA / 10 μA
600.0 mA / 100 μA
6 A / 1 mA
10 A / 10 mA
Accuracy± (1.5 % of mv + 5 Digit)



Resistance
Measuring range / Resolution60.00 Ohm / 0.01 Ohm
600.0 Ohm / 0.1 Ohm
6.000 kOhm / 1 Ohm
60.00 kOhm / 10 Ohm
600.0 kOhm / 100 Ohm
6.000 MOhm / 1 kOhm
60.00 MOhm / 10 kOhm
Accuracy± (1.5 % of mv + 3 Digit)



Capacitance
Measuring range / Resolution6.000 nF / 0.001 nF
60.00 nF / 0.01 nF
600.0 nF / 0.1 nF
6.000 μF / 0.001 μF
60.00 μF / 0.01 μF
600.0 μF / 0.1 μF
6.000 mF / 1 μF
60.00 mF / 10 μF
Accuracy± (0.5 % of mv + 3 Digit)



Frequency
Measuring range / Resolution600.0 Hz / 0.1 Hz
6.000 kHz / 1 Hz
60.00 kHz / 10 Hz
600.0 kHz / 100 Hz
6.000 MHz / 1 kHz
60.00 MHz / 10 kHz
Accuracy± (0.1 % of mv + 1 Digit)



Instrument Measurement Functions
Diode testyes
Continuity testingyes
Current probe measurement with adapteryes
Display ligthingyes
Holdyes
MinMaxyes
Temperature measurement with adapteryes
True RMSyes
Low-pass filteryes
Duty cycle measurementyes
Display (counts)6,000
