Testo 300 Kit 1 – Flue Gas Analyzer (O2, CO up to 4,000 ppm)

Testo 300 Kit 1 – Flue Gas Analyzer (O2, CO up to 4,000 ppm)



  • Fast and easy to operate: intuitive measurement menus and fast-response Smart-Touch display
  • Including O2 and CO sensor up to 4,000 ppm
  • Large 5-inch HD display – see all the system’s measuring values at a glance



SKU: 0564 3002 70 Category:
  • Description
  • Technical Data
  • Downloads

Description

Testo Malaysia Testo 300 Kit 1 – Flue Gas Analyzer (O2, CO up to 4,000 ppm)



  • Fast and easy to operate: intuitive measurement menus and fast-response Smart-Touch display
  • Including O2 and CO sensor up to 4,000 ppm
  • Large 5-inch HD display – see all the system’s measuring values at a glance

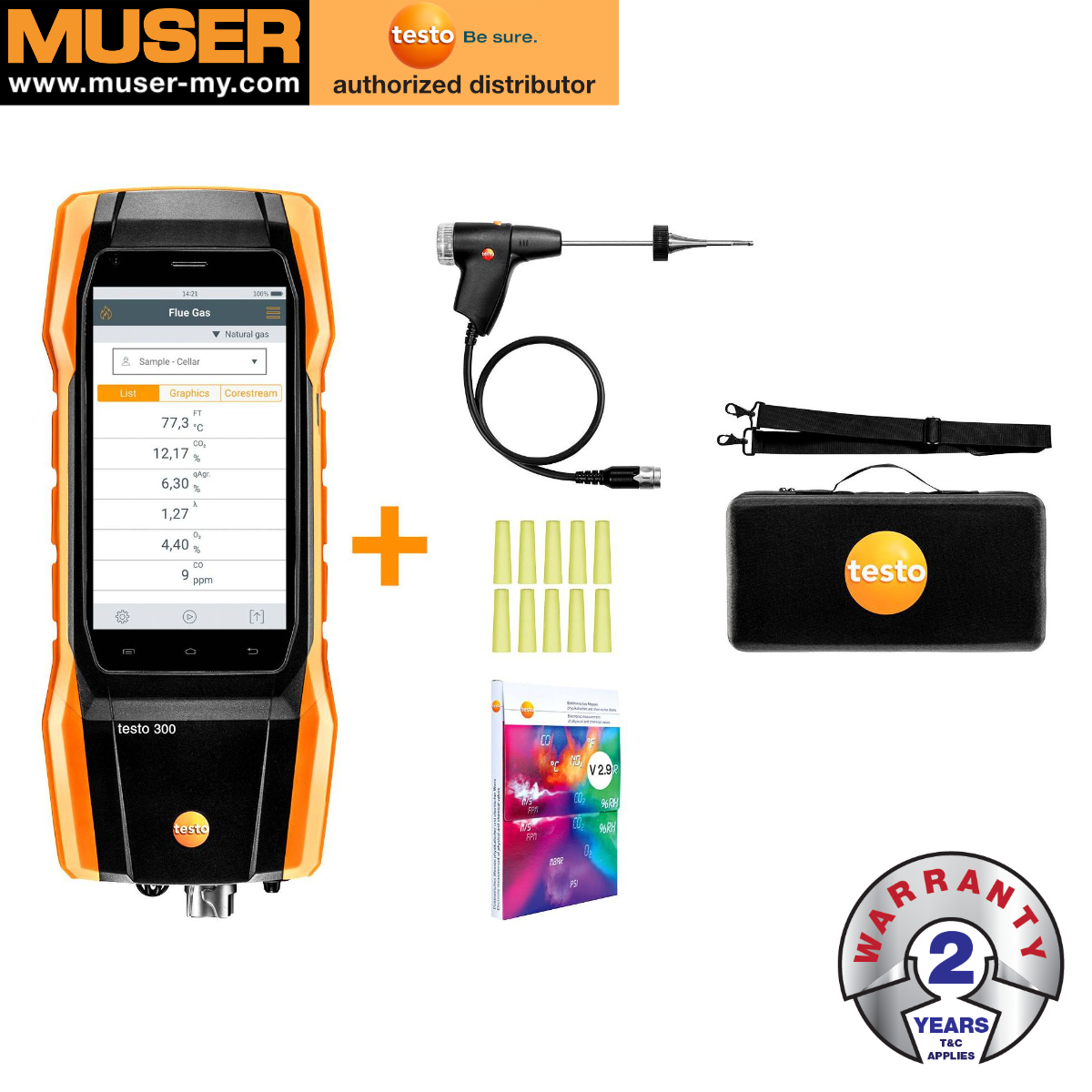

  • In the kit: testo 300 flue gas analyzer, including O2 and CO sensor up to 4,000 ppm, mains unit, basic flue gas probe, spare dirt filters, EasyHeat software, instrument case



Testo 300 Kit 1 | Product Description

With this kit, you will be equipped for the most important measurements involving heating systems: the TÜV-tested testo 300 flue gas analyzer is supplied with O2 and CO sensor up to 4,000 ppm, basic flue gas probe, instrument case and practical accessories.



Testo 300 Kit 1 | Delivery Scope

  • testo 300 flue gas analyzer with O2 and CO sensor up to 4,000 ppm (0633 3002 70)
  • USB mains unit, including cable (0554 1105)
  • Compact basic flue gas probe, 180 mm, Ø 6 mm, Tmax. 500°C; 1.5 m hose; including dirt filters and cone for fixing (0600 9740)
  • Spare dirt filters, compact probe; 10 off (0554 0040)
  • EasyHeat PC software (0554 3332)
  • Instrument bag (0516 3001)



Testo 300 Kit 1 | Applications

Flue gas measurement on heating systems



Ideal for measurements involving heating systems:

  • high-quality sensors, smart-touch operation, clearly structured measurement menus, creation of documentation on site, e-mailing of reports, large HD display, robust housing

Further areas of application:

  • gas flow pressure measurement*, gas pipe test*, differential temperature measurement (flow and return temperature on heating systems)*, ambient CO measurement*, flue draught measurement on heating systems*

* Please note: additional probes or accessories are required for these measurements and have to be ordered separately.



VIEW PRODUCT VIDEO



View Testo product range

Visit Testo website

Back to Home



USB mains unit incl. cable

Order-Nr.  0554 1105

General technical data
Power supply 5 V mains unit, 1 A, 230 V, Micro USB



Compact basic flue gas probe, 180 mm, Ø 6 mm, Tmax 500 °C

Order-Nr.  0600 9740

General technical data
Length probe shaft 180 mm
Cable length 1.5 m
Diameter probe shaft 6 mm
Product colour Black
Temperature maximum 500 °C
Diameter 6 mm
Weight 346 g
