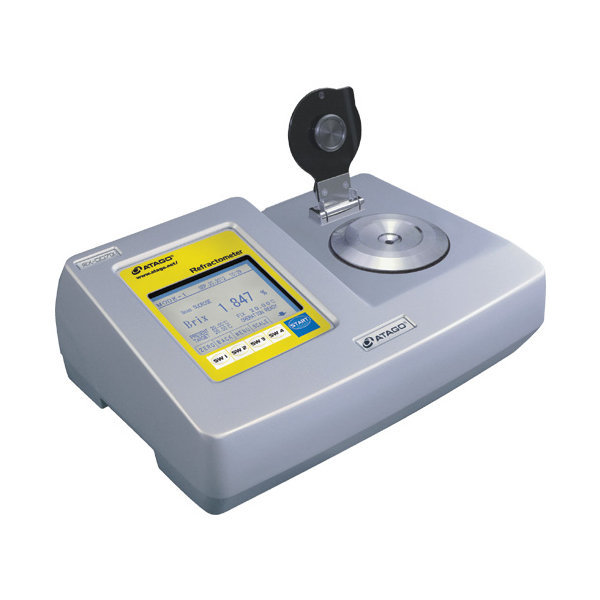

Atago Malaysia | 3921 Digital Refractometer RX-007α | Brix 0~5%, Refractive Index 1.330150~1.341500
.gif){kind=icon} | Calibration with water |  | Digital display |
 | AC outlet (AC100 to 240V) |  | Automatic Temperature Compensation (ATC) |
 | RS-232C Interface |  | User scales can be inputted |
 | Can be connected to a printer |  | Measurement at a set temperature |
 | Refractive index scale |
- The NEW RX-007α (alpha) is suitable for measuring water soluble samples with very low concentrations (5.000% or less) such as tea (green tea, black tea, oolong tea) and low sugar beverages at a very high accuracy of ±0.005%.
- This product comes standard with a two (2) year limited warranty against manufacturer’s defects from the date of the original purchase. This warranty does not cover or apply to the prism. The warranty period can be extended to three (3) years if the product is registered with ATAGO.
- FDA 21 CFR Part 11 Software Included in Standard Delivery.
3921 Digital Refractometer RX-007α | Features
World’s Highest Standard of Accuracy
The RX series are the most accurate of ATAGO refractometers programmed with a trusted and advanced algorithm. The epitome of which boasts the accuracy of ±0.000010 nD and ±0.005% Brix.
Main Features
- Visual “Pass/Fail” Indication
- Programmable User Scale
- Password Security
FDA 21 CFR Part 11
Software is available to support your FDA 21 CFR Part 11 compliance.
Ergonomically Designed Layout
The RX- a series was designed with ease of use in mind. Extensive research was performed in the design phase to ensure an ergonomic interface that made operation easy while maximizing efficiency.
4 Measurement Mode Options
MODE-1: For maximum accuracy
Displays the measurement value once the sample reaches the target temperature.
MODE-3: For no temperature control
Provides an option to turn the thermo-module off. Without temperature control, the measurement value is displayed in 4 seconds after the START key is pressed.
MODE-2: For fast results
Measures refractive index and temperature at fixed intervals and displays the estimated measurement value at the target temperature.
MODE-S: For emulsion samples
Displays the measurement value once a certain level of sample stability is achieved.
Tried, tested, and proven features and design
3921 Digital Refractometer RX-007α | Application Examples
Refractive Index
Refractive Index is a common quality standard measure for pharmaceutical or chemical products. Measurements need to be taken at a constant temperature, commonly 20°C, 25°C, and 40°C. The RX-α units are equipped with the internal Peltier Thermo-Module, and measurement starts once the target temperature is reached.
 |  |  |
| Fragrance and Food Additives | Pharmaceutical Products | Cosmetics |
 |  |  |
| Petroleum and Organic Solutions | Oils and Fats | Detergents |
Brix
Brix is measured for quality control purposes in the food and beverage industries. The RX-α units are widely used for fruit juice, condiments, jams, and honey. The RX-007α (minimum indication 0.001% Brix) is used for tea and unsweetened drinks.
 |  |  |
| Beverages and Fruit Juice | Jams, Honey, Liquid Sugar, Syrups | Condiments, Sauces, Soups |
Concentrations
The concentrations of industrial solutions are often monitored. Examples include water-based cutting oils and cleaning solutions, hydrogen peroxide, coolants, and alcohol solutions. Although the Brix scale is commonly used, user scales can also be programmed to display converted sample values.
 |  |  |
| Chemical Solutions | Cutting Oil and Quenching Oil | Antifreeze and Coolants |
3921 Digital Refractometer RX-007α | Measurement Method
4 easy steps:
 |  |  |  |
| 1. Place a sample on the prism. | 2. Press the START key to start a measurement. | 3. Measurement value is displayed. | 4. Wipe off the sample to clean. |
