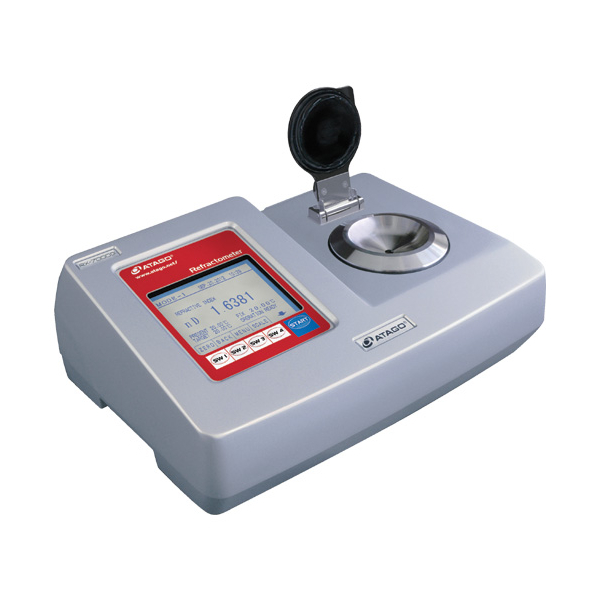

Atago Digital Refractometer RX-7000α | Refractive Index (nD) 1.325~1.700, Brix 0~100% | Code 3262

Atago Digital Refractometer RX-7000α | Refractive Index (nD) 1.325~1.700, Brix 0~100% | Code 3262

  • Suitable for high-temperature samples.
  • Equipped with Automatic Temperature Compensation (ATC) feature.
  • Can be connected to a PC using RS-232 adapter.
  • Description
  • Technical Data
  • Downloads
  • Vendor Info
  • More Products

Description

Atago Malaysia | 3262 Digital Refractometer RX-7000α | Refractive Index (nD) 1.325~1.700, Brix 0~100%

Calibration with waterDigital display
AC outlet (AC100 to 240V)Automatic Temperature Compensation (ATC)
High temperature samplesRS-232C Interface
User scales can be inputtedCan be connected to a printer
Measurement at a set temperatureRefractive index scale



  • The RX-7000α (alpha) is an improved (upgraded) model for a measurement range of refractive index and measurement temperature of an RX-5000α (alpha). The thermo module for constant temperature is equipped.
  • It is best for measuring oils and fats of high melt point, higher refractive index perfumes, organic solvents, etc. The RX-7000α (alpha) has the manual calibration facility which compensate difference in standard liquids and measurement values by other refractometers.
  • This product comes standard with a two (2) year limited warranty against manufacturer’s defects from the date of the original purchase. The warranty period can be extended to three (3) years if the product is registered with ATAGO.
  • FDA 21 CFR Part 11 Software Included in Standard Delivery.



3262 Digital Refractometer RX-7000α | Features

World’s Highest Standard of Accuracy

The RX series are the most accurate of ATAGO refractometers programmed with a trusted and advanced algorithm. The epitome of which boasts the accuracy of ±0.000010 nD and ±0.005% Brix.

Main Features

  1. Visual “Pass/Fail” Indication
  2. Programmable User Scale
  3. Password Security

FDA 21 CFR Part 11

Software is available to support your FDA 21 CFR Part 11 compliance.

Ergonomically Designed Layout

The RX- a series was designed with ease of use in mind. Extensive research was performed in the design phase to ensure an ergonomic interface that made operation easy while maximizing efficiency.

4 Measurement Mode Options

MODE-1: For maximum accuracy
Displays the measurement value once the sample reaches the target temperature.

MODE-3: For no temperature control
Provides an option to turn the thermo-module off. Without temperature control, the measurement value is displayed in 4 seconds after the START key is pressed.

MODE-2: For fast results
Measures refractive index and temperature at fixed intervals and displays the estimated measurement value at the target temperature.

MODE-S: For emulsion samples
Displays the measurement value once a certain level of sample stability is achieved.

Please click the image below:



Tried, tested, and proven features and design



3262 Digital Refractometer RX-7000α | Application Examples

Refractive Index

Refractive Index is a common quality standard measure for pharmaceutical or chemical products. Measurements need to be taken at a constant temperature, commonly 20°C, 25°C, and 40°C. The RX-α units are equipped with the internal Peltier Thermo-Module, and measurement starts once the target temperature is reached.

Fragrance and Food AdditivesPharmaceutical ProductsCosmetics
Petroleum and Organic SolutionsOils and FatsDetergents



Brix

Brix is measured for quality control purposes in the food and beverage industries. The RX-α units are widely used for fruit juice, condiments, jams, and honey. The RX-007α (minimum indication 0.001% Brix) is used for tea and unsweetened drinks.

Beverages and Fruit JuiceJams, Honey, Liquid Sugar, SyrupsCondiments, Sauces, Soups



Concentrations

The concentrations of industrial solutions are often monitored. Examples include water-based cutting oils and cleaning solutions, hydrogen peroxide, coolants, and alcohol solutions. Although the Brix scale is commonly used, user scales can also be programmed to display converted sample values.

Chemical SolutionsCutting Oil and Quenching OilAntifreeze and Coolants



3262 Digital Refractometer RX-7000α | Measurement Method

4 easy steps:

1. Place a sample on the prism.2. Press the START key to start a measurement.3. Measurement value is displayed.4. Wipe off the sample to clean.



Click here to visit our range of Atago products!

Or visit Atago Global Website!

Specifications

ModelRX-7000α
Cat.No.3262
ScaleRefractive index
Brix
Measurement RangeRefractive index (nD) : 1.32500 to 1.70000
Brix : 0.00 to 100.00%
(ATC : 5 to 70°C)
ResolutionRefractive index (nD) : 0.00001 (0.0001)*
Brix : 0.01% (0.1%)*
Temperature: 0.01°C
*Factory default setting
Measurement AccuracyRefractive index (nD) : ±0.0001
Brix : ±0.1%
* When measuring a standard sucrose solution of up to 50% Brix or standard refractive index solution in MODE-1 at 20°C
RepeatabilityRefractive index (nD) : ±0.00005
Brix : ±0.02%
* When measuring a standard sucrose solution of up to 50% Brix or standard refractive index solution in MODE-1 at 20°C
Temperature control range5.00 to 70.00°C
(Lowest is ambient temp -10°C)
Measurement Temperature5 to 70°C
Power SupplyAC100V to 240V, 50/60Hz
Dimensions & Weight37×26×14cm, 6.8kg
(Main Unit only)
Power consumption65VA
ModeMODE-1:
Displays the measurement value once the sample reaches the target temperature.MODE-2:
Measures refractive index and temperature at fixed intervals and displays the estimated measurement value at the target temperature.MODE-3:
The thermo-module can be turn off. Without temperature control, the measurement value is displayed in 4 seconds after the START key is pressed.MODE-S:
Displays the measurement value once a certain level of sample stability is achieved.
Output terminals• Printer (for ATAGO digital printers)
• Computer – RS-232C
Connection to a USB port requires a USB to RS-232 adapter (optional)
Warranty2 years standard (3 years with product registration)



Options

* Calibration Certificate : Contact us for details.
