Description

testo Malaysia 350 | Analysis Box – Exhaust Gas Analysis Systems

  • Increased measurement range for unlimited measurements even when gas concentrations are higher

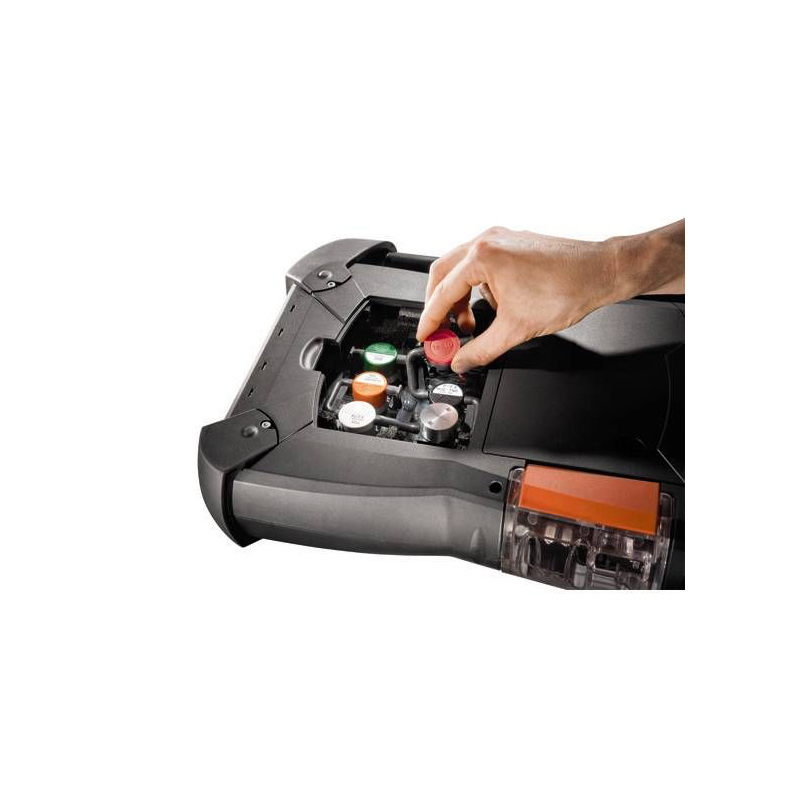

  • Easy-to-change gas sensors and easy access to wearing parts
  • Sealed housing with built-in impact protection for use in harsh conditions
  • Automatic processing of measuring programmes over a longer period

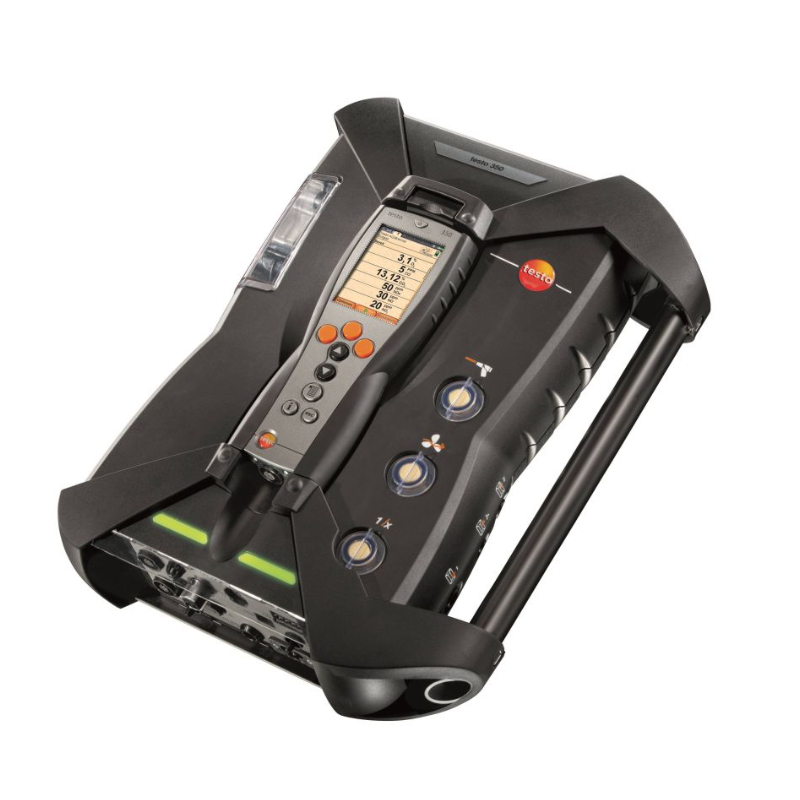

The testo 350 is a rugged, easy-to-use exhaust gas analyzer designed to meet the highest demands when it comes to carrying out precise industrial emission measurements and providing proper data administration. The Analysis Box can be operated with up to 6 gas sensors, 5 of which are optional. This allows you to select freely from sensors for CO, NO, NO2, SO2, H2S, CxHy and CO2.



Product Description

Ideal for professional exhaust gas analysis and industrial emission measurements. The testo 350 exhaust gas analyzer is a rugged piece of kit designed to meet the demands of a variety of different measuring and analysis applications. It is also excellently suited for complex data compilation.

The testo 350 exhaust gas analyzer is made up of two separate units

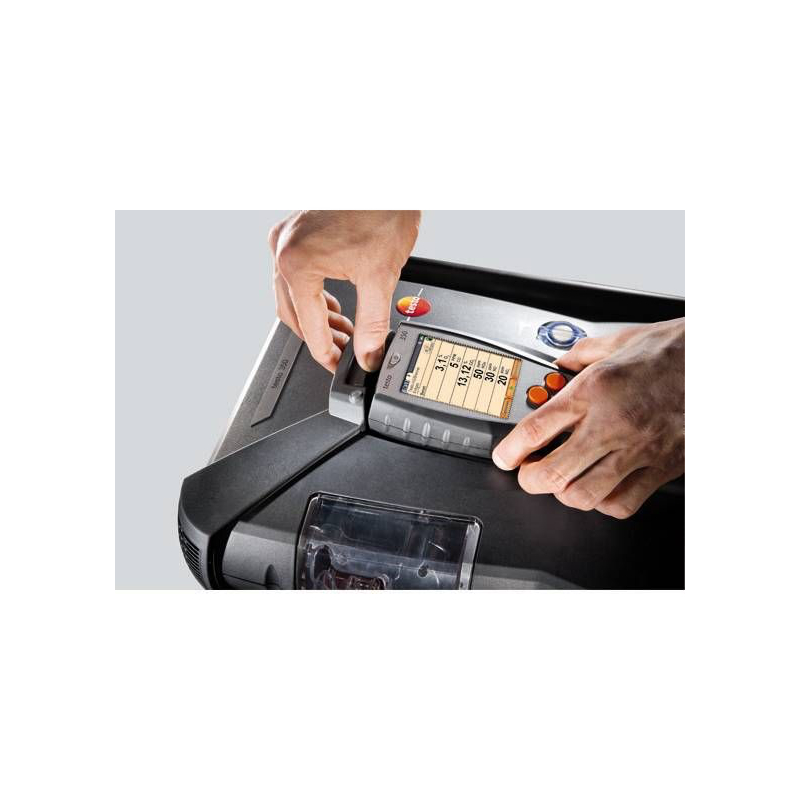

  • The testo 350 Control Unit (separate product) is used to control emission measurements. It has a clearly structured graphic display and is especially easy to use. There are four different applications in the menu to choose from: burner, gas turbine, motors and user-defined applications. The instructions on the display guide you through the measurement and make the steps leading up to the start of the measurement easier. This saves both time and hassle. The Control Unit can also be used to remote control the Analysis Box when it is not positioned at the exhaust gas pipe or measurement site. This is especially advisable when carrying out work on larger systems.
  • The testo 350 Analysis Box contains the sensor system and the electronics that are needed to perform emission measurements. The Analysis Box comes standard equipped with an O2 gas sensor. You will, however, need to connect at least one more sensor (max. six) to operate the Box. Optional sensors include gas sensors for CO, CO2, NO, NO2, SO2, H2S and CxHy.

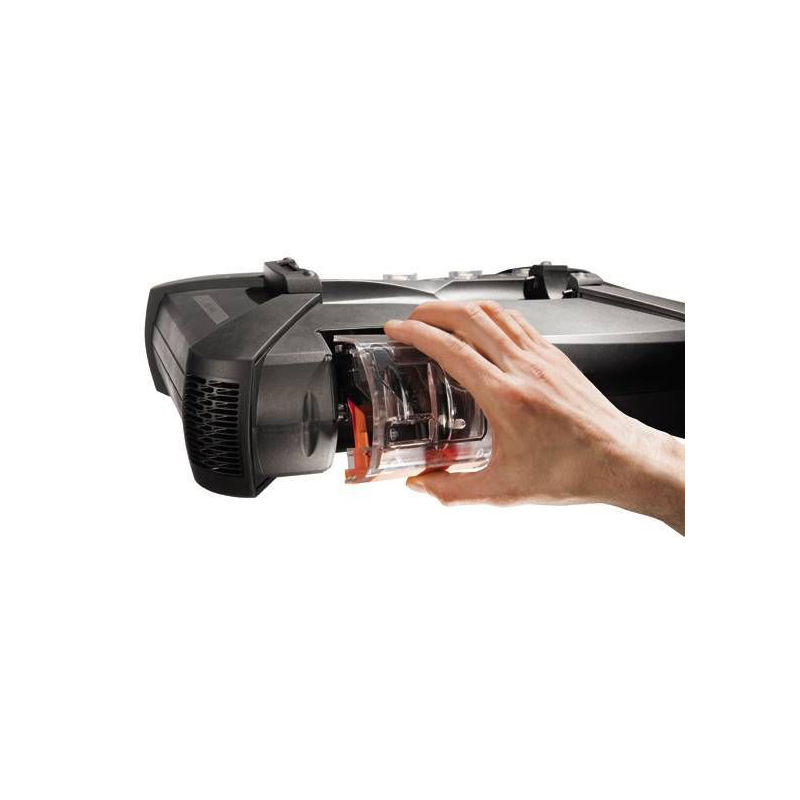

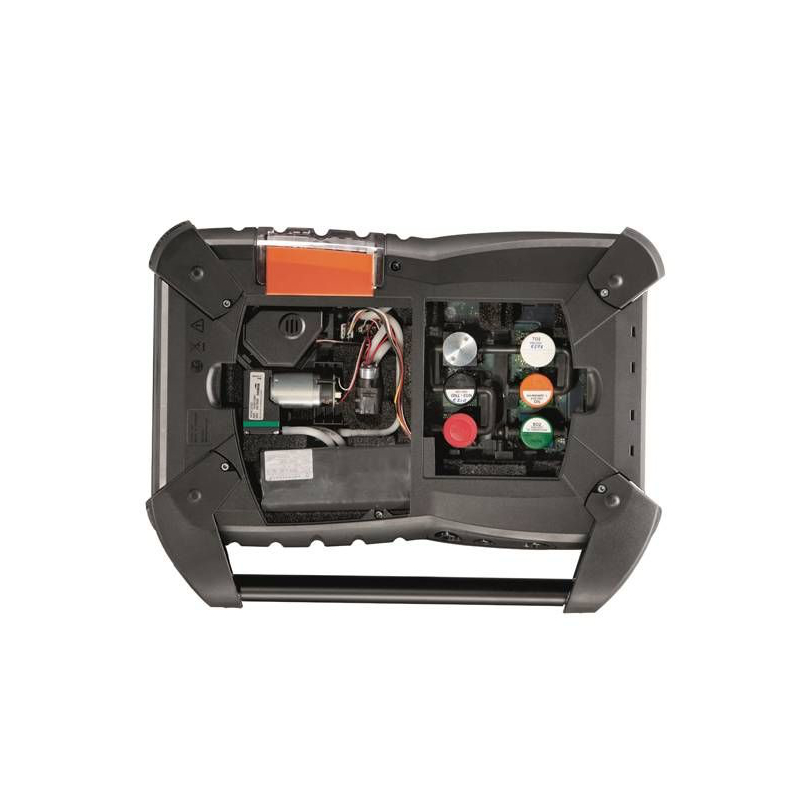

The increased measuring range allows you to carry out unlimited measurements even when gas concentrations are high. The increased measuring range (thinning) is automatically activated when gas concentrations are unexpectedly high. The measuring range of a selected sensor can be increased by a certain factor. An opening on the underside of the analyzer gives you access to all the relevant service and wearing parts, i.e. pumps and filters, which can easily be cleaned or replaced.  The testo 350 also has numerous diagnosis functions with easy-to-understand readings and information. The exhaust gas analyzer constantly displays the current reading.

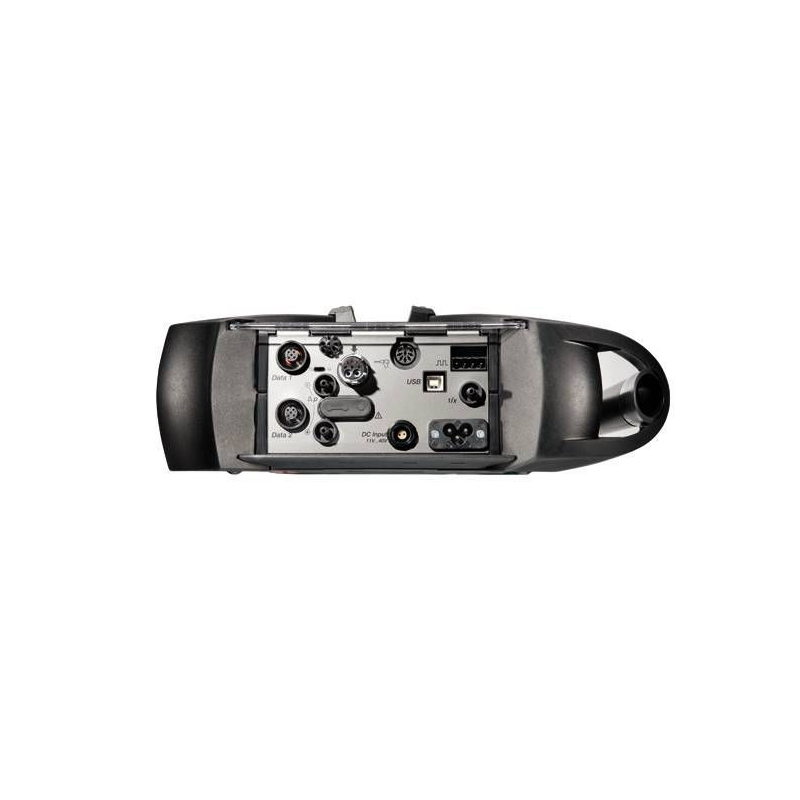

The Analysis Box can be controlled by the Control Unit. It can, however, also be operated directly via USB, Bluetooth® 2.0 or CANCase from a PC or notebook. After the Analysis Box has been programmed, it can carry out measurements independently and save the results. It can also transfer the data directly to the Control Unit.

Conducting industrial emission measurements with the testo 350

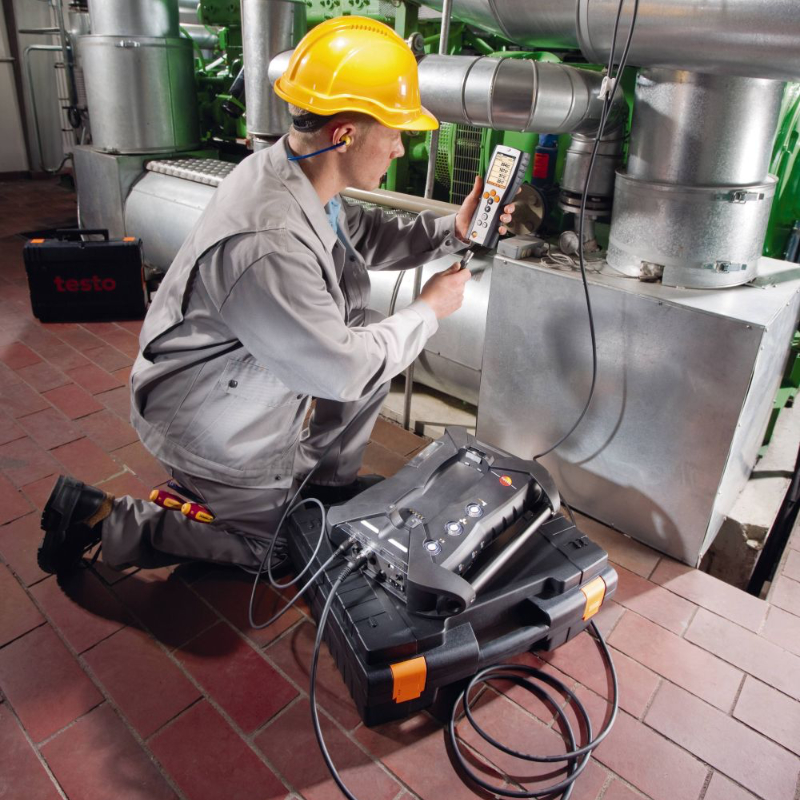

The testo 350 exhaust gas analyzer has been specially designed for carrying out industrial emission measurements in the field. In the tab “Applications” you will find out more about:

  • Emission measurements on industrial motors
  • Emission measurements on burners
  • Emission measurements on gas turbines
  • Emission measurements on thermo processes



Delivery Scope

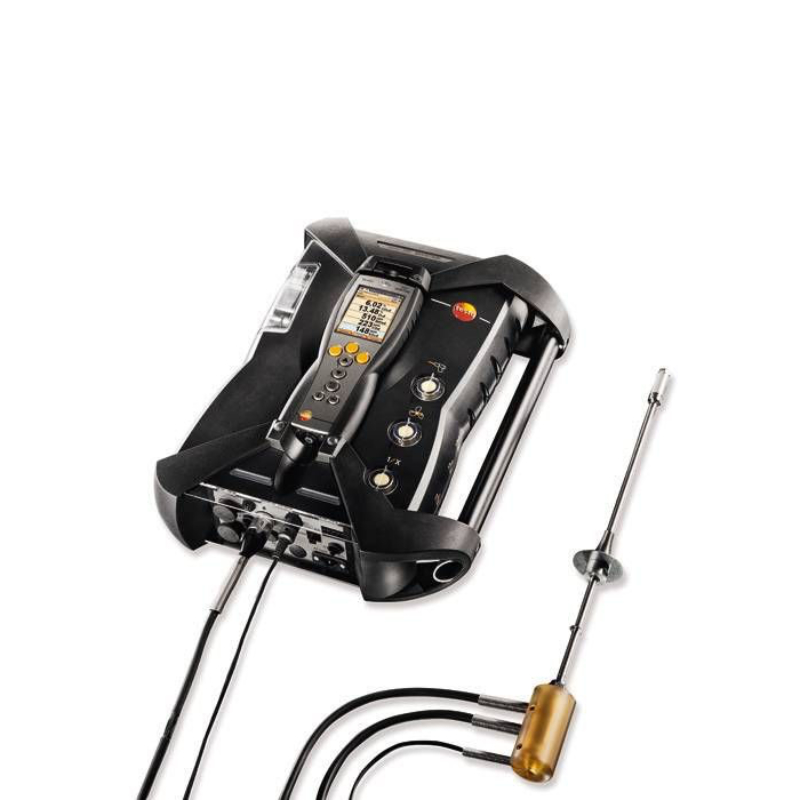

testo 350 Analysis Box, O2, incl. differential pressure sensor, type K NiCr-Ni and type S temperature sensor port, Pt10Rh-Pt, Testo data bus port, rechargeable battery, built-in combustion air sensor (NTC), trigger port, data memory, USB interface, carrying strap set for the testo 350 analyzer box and control unit.



View our range of testo products here!

Or visit testo website

Temperature – NTC

Measuring range-20 to +50 °C
Accuracy±0.2 °C (-10 to +50 °C)
Resolution0.1 °C (-20 to +50 °C)

Ambient temperature probe



Temperature – TC Type K (NiCr-Ni)

Measuring range-200 to +1370 °C
Accuracy±0.4 °C (-100 to +200 °C)
±1 °C (-200 to -100.1 °C)
±1 °C (200.1 to +1370 °C)
Resolution0.1 °C (-200 to +1370 °C)



Temperature – TC Type S (Pt10Rh-Pt)

Measuring range0 to +1760 °C
Accuracy±1 °C (0 to +1760 °C)
Resolution0.1 °C (0 to +1760 °C)



Differential Pressure – Piezoresistive

Measuring range-40 to +40 hPa
-200 to +200 hPa
Accuracy±1.5 % of mv (-40 to -3 hPa)
±1.5 % of mv (+3 to +40 hPa)
±0.03 hPa (-2.99 to +2.99 hPa)
±1.5 % of mv (-200 to -50 hPa)
±1.5 % of mv (+50 to +200 hPa)
±0.5 hPa (-49.9 to +49.9 hPa)
Resolution0.01 hPa (-40 to +40 hPa)
0.1 hPa (-200 to +200 hPa)



Absolute Pressure

Measuring range600 to +1150 hPa
Accuracy±10 hPa
Resolution1 hPa

opt. when equipped with IR sensor



Flue gas O

Measuring range0 to +25 Vol.%
Accuracy±0.8% of fsv (0 to +25 Vol.%)
Resolution0.01 Vol.% (0 to +25 Vol.%)
Reaction time t₉₀20 s (t95)



Flue gas CO (with H-compensation)

Measuring range0 to +10000 ppm
Accuracy±5 % of mv (+200 to +2000 ppm)
±10 % of mv (+2001 to +10000 ppm)
±10 ppm (0 to +199 ppm)
Resolution1 ppm (0 to +10000 ppm)
Reaction time t₉₀40 s

H₂ only as an indicator



Flue gas COlow

Measuring range0 to 500 ppm
Accuracy±5 % of mv (+40 to +500 ppm)
±2 ppm (0 to +39.9 ppm)
Resolution0.1 ppm (0 to +500 ppm)
Reaction time t₉₀40 s

H₂ only as an indicator



Flue gas NO

Measuring range0 to +4000 ppm
Accuracy±5 % of mv (+100 to +1999 ppm)
±10 % of mv (+2000 to +4000 ppm)
±5 ppm (0 to +99 ppm)
Resolution1 ppm (0 to +4000 ppm)
Reaction time t₉₀30 s



Flue gas Nolow

Measuring range0 to +300 ppm
Accuracy±5 % of mv (+40 to +300 ppm)
±2 ppm (0 to +39.9 ppm)
Resolution±0.1 ppm (0 to +300 ppm)
Reaction time t₉₀30 s



Flue gas NO

Measuring range0 to +500 ppm
Accuracy±5 % of mv (+100 to +500 ppm)
±5 ppm (0 to +9.99 ppm)
Resolution0.1 ppm (0 to +500 ppm)
Reaction time t₉₀40 s



Flue gas SO

Measuring range0 to +5000 ppm
Accuracy±5 % of mv (+100 to +2000 ppm)
±10 % of mv (+2001 to +5000 ppm)
±5 ppm (0 to +99 ppm)
Resolution1 ppm (0 to +5000 ppm)
Reaction time t₉₀30 s



Flue gas degree of effectivity, Eta (calculated)

Measuring range0 to +120 %
Resolution0.1 % (0 to +120 %)



Flue gas loss (calculated)

Measuring range0 to +99.9 %
Resolution0.1 % (0 to +99.9 %)



Flue gas dewpoint (calculated)

Measuring range0 to +99.9 °Ctd
Resolution0.1 °Ctd (0 to +99.9 °Ctd)



Flue gas CO calculation (calculated from O)

Measuring range0 to CO₂ max
Accuracycalculated from O₂ ±0.2 Vol.%
Resolution0.01 Vol.%



Flue gas HS

Measuring range0 to +300 ppm
Accuracy±5 % of mv (+40 to +300 ppm)
±2 ppm (0 to +39.9 ppm)
Resolution0.1 ppm (0 to +300 ppm)
Reaction time t₉₀35 s



Flue gas CO – NDIR

Measuring range0 to +50 Vol.%
Accuracy±0.3 Vol.% + 1 % of mv (0 to 25 Vol.%)
±0.5 Vol.% + 1.5 % of mv (25 to 50 Vol.%)
Resolution0.01 Vol.% (0 to 25 Vol.%)
0.1 Vol.% (> 25 Vol.%)
Reaction time t₉₀10 s



Velocity / Volume flow

Measuring range0 to +40 m/s
Resolution0.1 m/s (0 to +40 m/s)



Methane (CH)

Measuring range100 to 40000 ppm
Accuracy< 400 ppm (100 to 4000 ppm)
< 10 % of mv (> 4000 ppm)
Resolution10 ppm
Min. O requirement in flue gas2 % + (2 x mV methane)
Reaction time t₉₀< 40 s
Response factor1

Lower explosion limit (LEL) must be adhered to.
The HC sensor is adjusted to methane ex-works. It can be adjusted to a different gas (propane or butane) by the user.



Propane (CH)

Measuring range100 to 21000 ppm
Accuracy< 400 ppm (100 to 4000 ppm)
< 10 % of mv (> 4000 ppm)
Resolution10 ppm
Min. O requirement in flue gas2 % + (5 x mV propane)
Reaction time t₉₀< 40 s
Response factor1.5

Lower explosion limit (LEL) must be adhered to.
The HC sensor is adjusted to methane ex-works. It can be adjusted to a different gas (propane or butane) by the user.



Butane (CH₁₀)

Measuring range100 to 18000 ppm
Accuracy< 400 ppm (100 to 4000 ppm)
< 10 % of mv (> 4000 ppm)
Resolution10 ppm
Min. O requirement in flue gas2 % + (6.5 x mV butane)
Reaction time t₉₀< 40 s
Response factor2

Lower explosion limit (LEL) must be adhered to.
The HC sensor is adjusted to methane ex-works. It can be adjusted to a different gas (propane or butane) by the user.



General technical data

Dimensions330 x 128 x 438 mm
Operating temperature-5 to +45 °C
HousingABS
Protection classIP40
WarrantyMeasuring instrument 2 years (excepting wearing parts e.g. gas sensors, etc.); CO sensor: 12 months; CO₂-IR sensors:24 months; Sensor NO2: 12 months; Sensor O₂: 18 months; Sensor SO₂: 12 months; Sensor H₂S: 12 months; Sensor CxHy: 12 months; The warranty applies to average sensor load.; rechargeable battery: 12 months; Sensor NOlow: 12 months; NO sensor 12 months; COlow sensor 12 months
Battery typelithium batteries
Battery life5 h
Power supplyAC mains unit 100V to 240V (50 to 60 Hz)
DC electric tension input11V to 40V
Trigger inputVoltage 5 to 12 Volt (rising or trailing edge) pulse width > 1 sec load: 5 V/max, 5 mA, 12 V/max. 40 mA
Max. humidity load70 °C dewpoint temperature
Dewpoint calculation0 °Ctd; 99 °Ctd
Max. dust load20 g/m³ dust in flue gas
Max. neg. press./flue gas-300 mbar
Max. pos. press./flue gas50 mbar
Hose length16.2 m (corresponds to 5 probe hose extensions)
Pump flow1 l/min. with through-flow monitoring
Maximum250,000 readings
Storage temperature-20 to +50 °C
Weight4800 g
