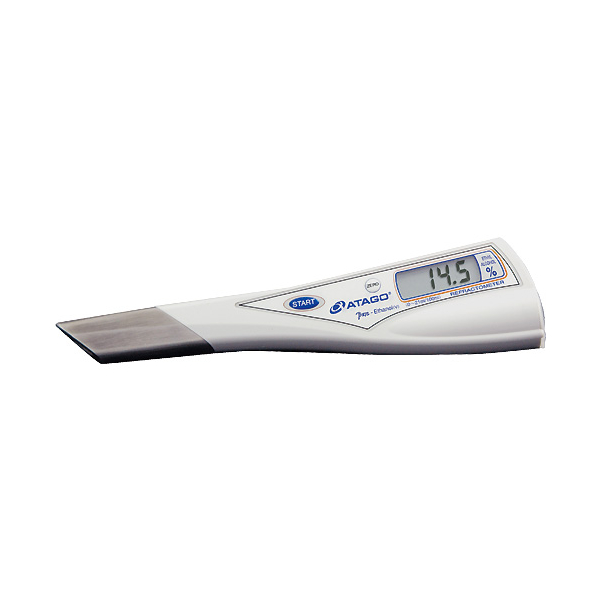

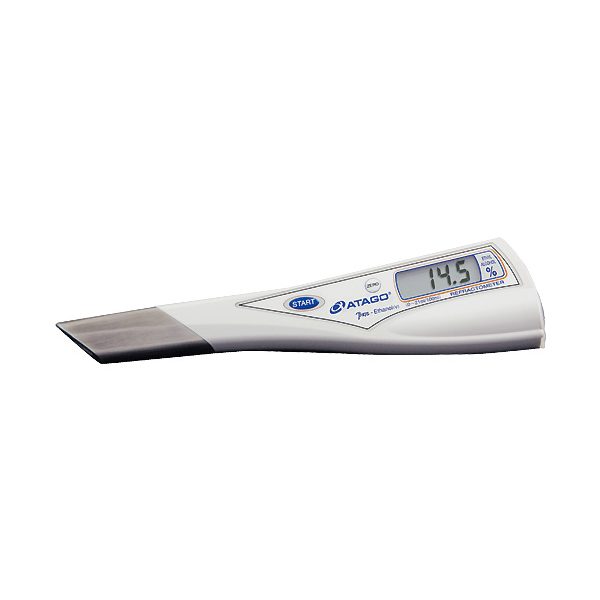

Atago PEN Refractometer PEN-Ethanol(V) | Ethyl Alcohol (mL/100mL) 0~53% | Code 3754

  • For ethyl alcohol concentration measurement in mL/100mL.
  • Water-resistant IP65 and Prism Head IP67 International Protection Class.
  • Equipped with new feature of continuous measurement.
Share on facebook
Share on twitter
Share on linkedin

Atago Malaysia | 3754 PEN Refractometer PEN-Ethanol(V) | Ethyl Alcohol (mL/100mL) 0~53%

Compact and easy to carry
Calibration with water
Battery operated
Digital display
Automatic Temperature Compensation
External Light Interference
Continuous measurement



  • The PEN-Ethanol(V) is suitable for measuring ethyl alcohol concentrations.
  • There is a new feature to perform continuous measurements.
  • Reliable construction with IP65 dust-tight and protection against water jets, as well as prism head IP67 dust-tight and protection against the effects of temporary immersion in water for long-lasting performance.
  • The displayed unit is in mL/100mL.



Digital Hand-Held PEN Refractometer
-New Continuous Measurement feature to expand your current measuring methods-




3754 PEN Refractometer PEN-Ethanol(V) | Features

Ergonomically designed for one-handed operation.
The Automatic Temperature Compensation function of the PEN enable you to take measurement readings regardless of the ambient temperature.
Convenient Storage case.
Protection class of the PEN is IP65 (Prism head IP67). You can rinse off the sample by running water on the prism. The design allows the user to easily wipe off the sample.
Revolutionary new feature ELI*
*External Light Interference (ELI) – Patent Pending.
High temperature sample can be measured.
*Do not dip the instrument directly into a boiling pot to measure; instead, place the liquid in a separate container and measure.



Click here to visit our range of Atago products!

Or visit Atago Global Website!

Specifications
Model PEN-Ethanol(V)
Cat.No. 3754
Scale Ethyl alcohol
Measurement Range Ethyl alcohol (mL/100mL): 0.0 to 53.0% (Automatic Temperature Compensation)
Resolution Ethyl alcohol (mL/100mL) : 0.5%
Measurement Accuracy Ethyl alcohol (mL/100mL) : ±1.0%
Temperature compensation range 5 to 30℃
Ambient Temperature 5 to 30℃
Liquid Sample Temperature 10 to 100℃
Power Supply 1 × Size AAA alkaline battery
Battery Life About 8,000 measurements with new alkaline batteries.
International Protection Class IP65 Dust-tight and Protected against water jets. Prism head IP67 Dust-tight and Protected against the effects of temporary immersion in water.
Dimensions & Weight 16×3.8×1.8cm, 70g (Main Unit only)
