Mitutoyo Malaysia PH-3515F Profile Projector

Mitutoyo PH-3515F Profile Projector

Screen diameter 350mm

  • Observation/measurement of cutting tools (end mills, lathe tools, tipped saws, etc.)
  • Cylindrical form (screws, springs, etc.)
  • Horizontal-beam design means easy workpiece loading/ unloading coupled with high weight-carrying capacity of glassless stage.
SKU: 172-868 Category:
Add to quote

Mitutoyo Malaysia PH-3515F Profile Projector

For efficient measurement, inspection and observation of very small workpieces


Mitutoyo Malaysia PH-3515F
SERIES 172 — Profile Projector

  • Unique projector employing horizontal optical system. The optical axis and the stage are parallel, and the workpiece can be easily removed.
  • For data processing, a 2D data processor QM-Data200 is available.
  • Optimal for contour observation/measurement of cutting tools (end mills, lathe tools, tipped saws, etc.), screws and springs.

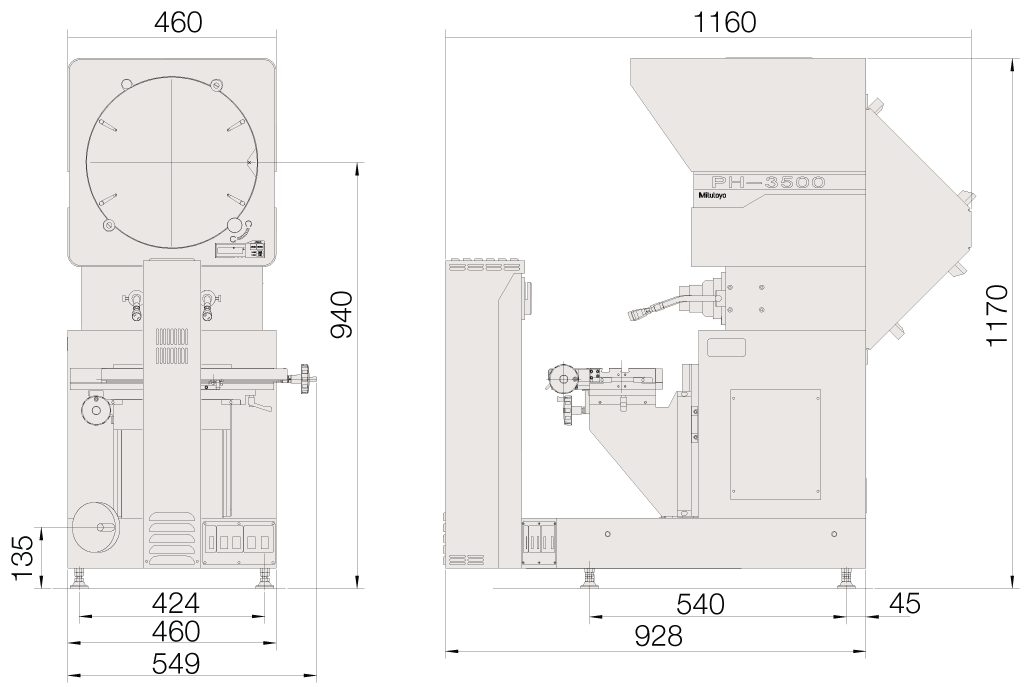

Mitutoyo Malaysia PH-3515F | Dimension

Mitutoyo Malaysia PH-3515F Profile Projector

To mount the optional counter (KA-212) and counter stand, approximately 300mm space is required on the right side of the main unit.



See all Mitutoyo products

Visit Mitutoyo website

Return Home



Protractor screen Model No. PH-3515F
Order No. 172-868*1
Projected image Erect-reversed
Protractor screen Effective diameter ø353 mm (13.9 in)
Screen material Fine-ground glass
Screen rotation ±360° (±370° for display)
Angle display Digital counter (LED) (ABS/INC mode switching), Zero Set
Resolution 1’ or 0.01° (switchable)
Mechanism Fine feed and clamp
Cross-hairs 90° (solid lines)
Projection lens Magnification 10X (standard accessory), 5X(PH-3515F only), 20X, 50X, 100X
Lens mountScrew mount
Magnification accuracyTransmitted illuminationWithin ±0.1% of nominal magnification
Surface illuminationWithin ±0.15% of nominal magnification
Illumination*3Transmitted illumination Halogen bulb (24 V, 150 W, 500 hours) (515530), Telecentric system, Heat-absorbing filter, Built-in cooling fan, 2-step (High/Low) brightness switch, Combination use with a color filter available
Surface illumination (oblique)Parabolic halogen bulb (24 V, 200 W, 500 hours) (12BAA637) Beam concentration and adjustment available, Heat-absorbing filter, Built-in cooling fan
Resolution for X/Y counter*4N/A
Measuring unit Digital scale
Measuring range (X×Y) 254×152 mm
*1: To denote your AC power cable add the following suffixes to the order No.: A for UL/CSA, D for CEE, DC for CCC, E for BS, K for KC, C and No suffix is required for PSE.
*3: For the PH-A14, a light source (24 V, 150 W), which is common to the Transmitted illumination and Surface illumination, is used. It is not possible to regulate brightness.
*4: XY counter is not built in the main unit of the PH-3515F or PH-A14. If a counter display is required, it is recommended to purchase the QM-Data200 or a counter (KA-212) separately.
Note: Depending on the angle of illumination, measurement results may be smaller than actual values.
