Mitutoyo Malaysia PJ-H30A2010B Profile Projector | Muser Apac

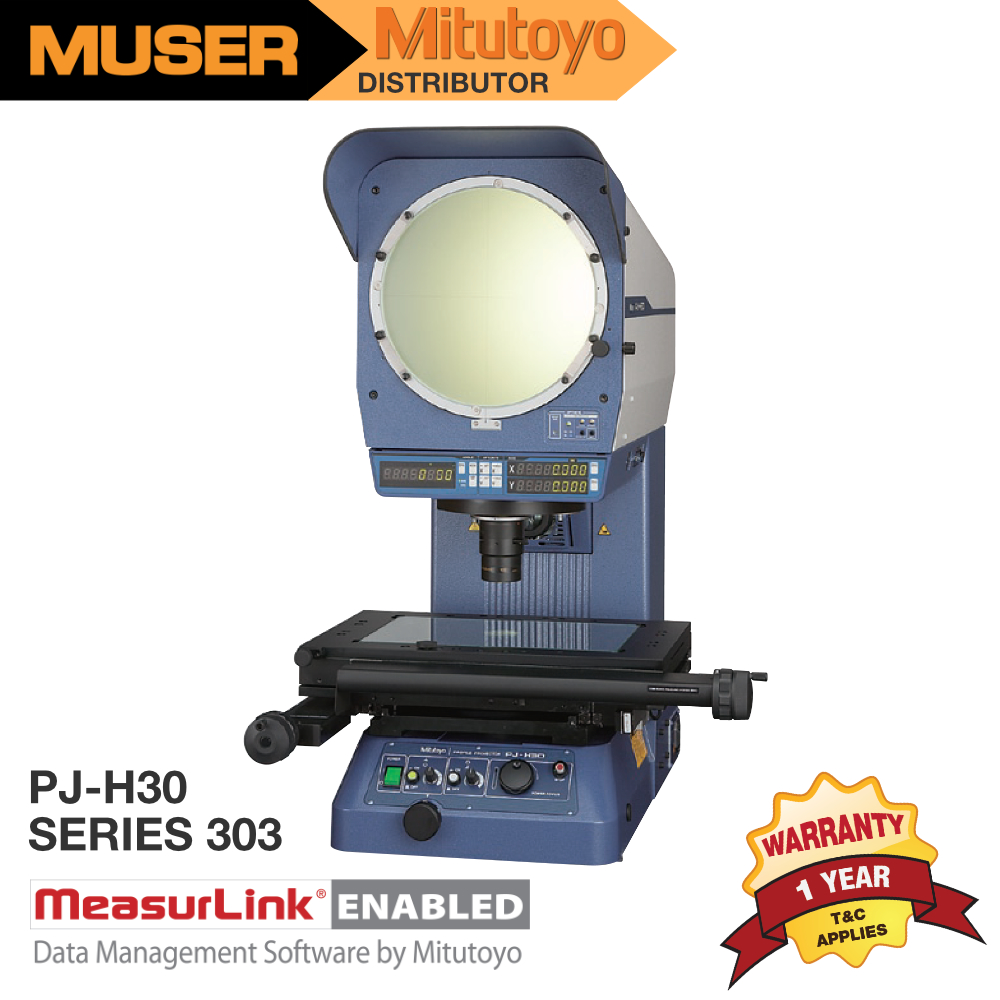

Mitutoyo PJ-H30A2010B Profile Projector

Screen diameter 300mm

  • Applicable to a wide range of workpiece size
  • Operations concentrated at the front of the instrument
  • An extensive choice of workstages
SKU: 303-713-1 Category:
Share on facebook
Share on twitter
Share on linkedin

Mitutoyo Malaysia PJ-H30A2010B Profile Projector

For efficient measurement, inspection and observation of very small workpieces


Mitutoyo Malaysia PJ-H30
SERIES 303 — Premium Benchtop Series

  • Conforms to JIS B7184: 1999 ”Profile projectors”.
  • High-end model that achieves accuracy of (3.0+0.02L) μm
  • ø306 mm screen makes erect-unreversed images more visible.
  • The largest measuring range in the class, up to 300×170 mm.
  • Quick-release handle and 3-lens parfocal turret enables smooth measurement of workpiece.
  • Elevating shaft mechanism for the screen head reduces operator fatigue.
  • Unique model equipped with a highly accurate edge detector (OPTOEYE) and motorized up/down drive is available.
  • For data processing, a 2D data processor QM-Data200 is available.



Mitutoyo Malaysia PJ-H30A2010B | Dimension

Mitutoyo Malaysia PJ-H30A2010B Profile Projector
*Measurement is in mm unit.


See all Mitutoyo products

Visit Mitutoyo website

Return Home



Protractor screen Model No. PJ-H30A2010B
Order No. 303-713-1*1
Projected image Erect
Protractor screen Effective diameter ø306 mm (12 in)
Screen material Fine-ground glass
Screen rotation ±360° (±370° for display)
Angle display Digital counter (LED) (ABS/INC mode switching, Zero Set)
Resolution 1’ or 0.01° (switchable)
Mechanism Fine feed and clamp
Cross-hairs 90° (solid lines)
Projection lens Magnification 10X (standard accessory), 5X, 20X, 50X, 100X, All lens have the same focus. Half-mirror for the coaxial surface illumination are built-in and movable.
Lens mount Bayonet mount, 3-lens mount turret type
Magnification accuracy Transmitted illumination Within ±0.1% of nominal magnification
Surface illumination Within ±0.15% of nominal magnification
Illumination Transmitted illumination Halogen bulb (24 V, 150 W, 50 hours) (515530), Variable Illumination angle (Coaxial surface/Oblique reflected, Beam concentration and adjustment), Built-in heat-absorbing filter, Built-in cooling fan, Stepless brightness adjustment, Soft lighting (inrush current reduction)
Surface illumination Halogen bulb (24 V, 150 W, 50 hours) (515530) Zoom Telecentric system, Heat absorbing filter, Built-in cooling fan, Stepless brightness adjustment, Soft lighting (inrush current reduction), Bulb sliding mechanism
Resolution for X/Y counter*2 0.001 mm / 0.0001 in
Measuring unit High-accuracy digital scale
Measuring range (X×Y) 200×100 mm
Measuring accuracy*3 (3+0.02L) μm L: Measured length (mm)
*1: To denote your AC power cable add the following suffixes to the order No.: A for UL/CSA, D for CEE, DC for CCC, E for BS, K for KC, C and No suffix is required for PSE.
*2: 0.5 μm or 0.1 μm resolution is also available. Please contact Mitutoyo Techno Service Business Division.
*3: Measuring method complies with JIS B7184.
