Mitutoyo PJ-A3010F-200 Profile Projector

Screen diameter 300mm

  • Applicable to a wide range of workpiece size
  • Operations concentrated at the front of the instrument
  • An extensive choice of workstages
SKU: 302-701 Category:
Share on facebook
Share on twitter
Share on linkedin

Mitutoyo Malaysia PJ-A3010F-200 Profile Projector

For efficient measurement, inspection and observation of very small workpieces


Mitutoyo Malaysia PJ-A3000
SERIES 302 — Standard Benchtop Series

  • A standard model that achieves both high operability and cost effectiveness.
  • Screen diameter is 300 mm and a range of stage sizes is available to suit a wide a range of applications.
  • The halogen lamp is easily replaced using a sliding mechanism.
  • For data processing, a 2D data processor QM-Data200 is available.

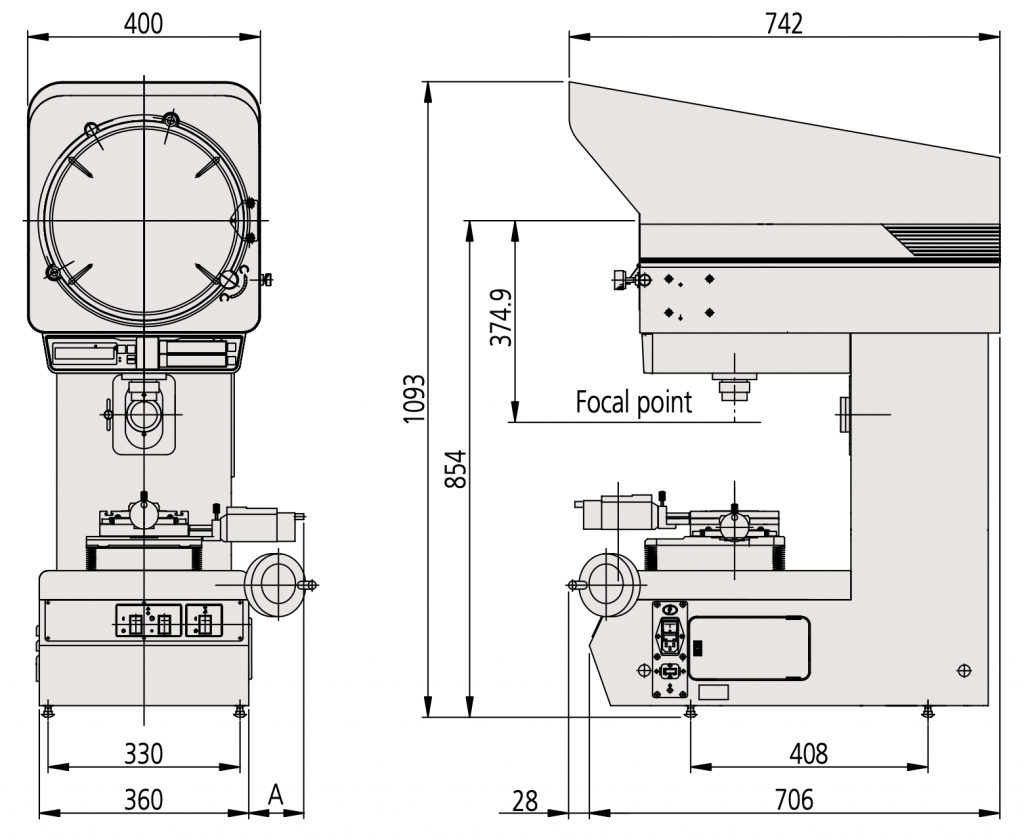

Mitutoyo Malaysia PJ-A3010F-200 | Dimension



Mitutoyo Malaysia PJ-A3010F-200 Profile Projector

A: 233mm (9.17”)
*Measurement is in mm unit.

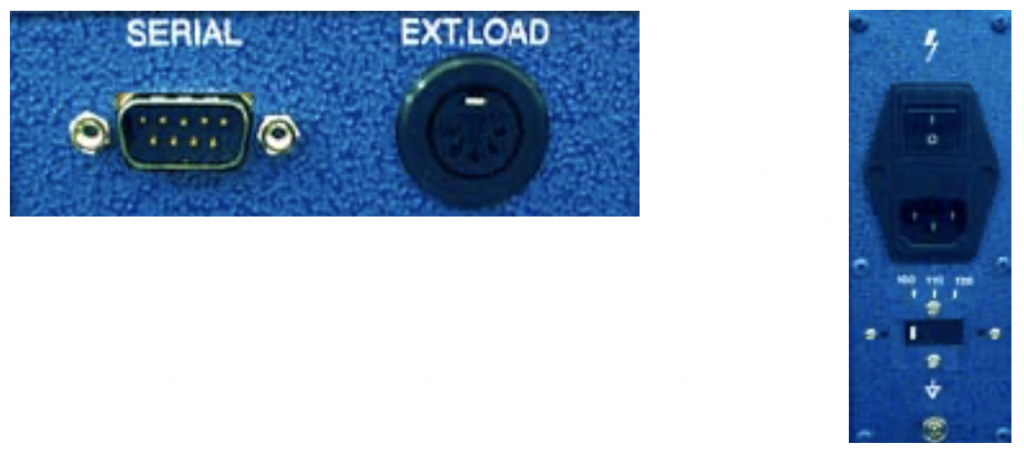

Mitutoyo Malaysia PJ-A3010F-200 | Main Unit Side Panel

Mitutoyo Malaysia PJ-A3010F-200 Profile Projector


See all Mitutoyo products

Visit Mitutoyo website

Return Home



Protractor screen Model No. PJ-A3010F-200
Order No. 302-701*
Projected image Inverted-reversed
Protractor screen Effective diameter ø315 mm (12.4 in)
Screen material Fine-ground glass
Screen rotation ±360° (±370° for display)
Angle display Digital counter (LED) (ABS/INC mode switching, Zero Set)
Resolution 1’ or 0.01° (switchable)
Mechanism Fine feed and clamp
Cross-hairs 90° (solid lines)
Projection lens Magnification 10X (standard accessory), 20X, 50X, 100X 10X, 20X (equipped with an external half-mirror for coaxial surface illumination)
Illumination Transmitted illumination Halogen bulb (24 V, 150 W, 500 hours) (512305), Telecentric system, Heat-absorbing filter, Built-in cooling fan, 2-step (High/Low) brightness switch, Combination use with a color filter available
Surface illumination Halogen bulb (24 V, 150 W, 500 hours) (512305) Beam concentration and adjustment available, Heat-absorbing filter, Built-in cooling fan
Resolution for X/Y counter 0.001 mm/0.0001 in
Measuring unit Digital scale
Measuring range (X×Y) 200×100 mm
*To denote your AC power cable add the following suffixes to the order No.: A for UL/CSA, -1D for CEE, -1DC for CCC, -1E for BS, -1K for KC, C and No suffix is required for PSE.
