Anton Paar Malaysia PMA 5 Pensky-Martens Flash Point Tester | Test & Measuring | Muser

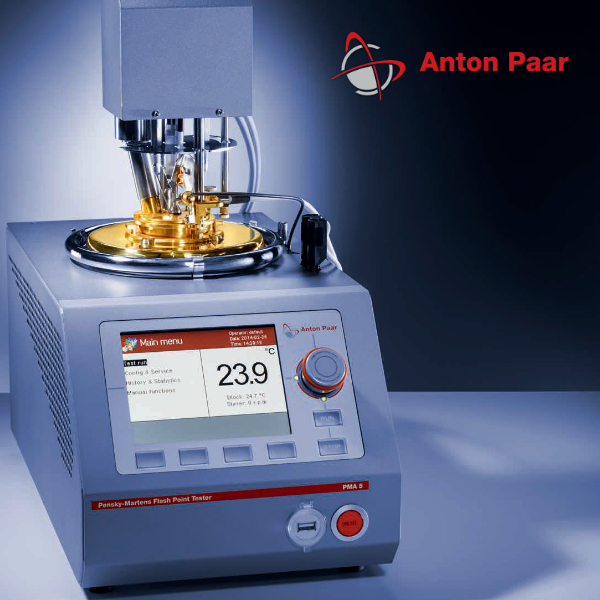

Anton Paar PMA 5 Pensky-Martens Flash Point Tester

  • Automatic closed-cup flash point tester.
  • Suitable for flammability applications on both biodiesel and biodiesel-blended fuels along with distillate fuels.
SKU: 107125 Category:

Anton Paar Malaysia PMA 5 Pensky-Martens Flash Point Tester

  • The automatic Pensky-Martens closed-cup tester measures the flash point at the lowest temperature at which the application of an ignition source causes the vapors of a sample to ignite.
  • PMA 5 is suitable for flammability applications on both biodiesel and biodiesel-blended fuels along with distillate fuels like diesel, heating oil and kerosene. It is also commonly used for other potentially flammable liquids.

Key Features
Benefits at a Glance

  • Integrated fire-extinguishing system automatically controlled or manually released (requires N2 or CO2 gas)

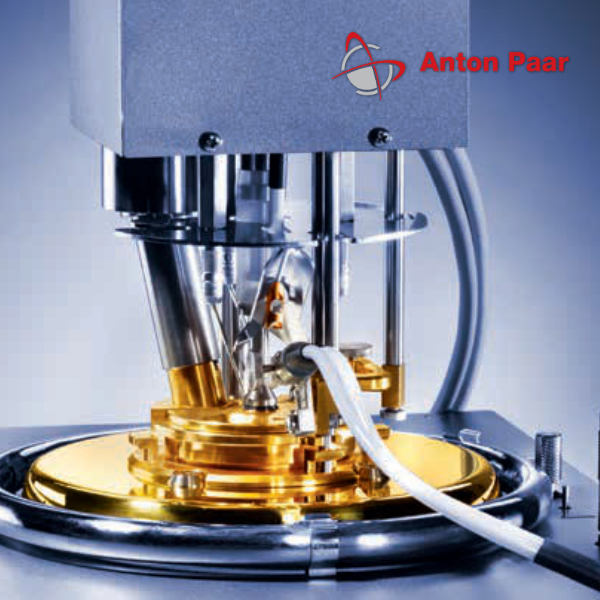

  • The One-Twist swivel-around multi-function head guarantees the safe and easy one-hand connection of all sensors and actuators such as the shutter release, stirrer, igniter and detector contacts
  • A multi-detector combines the flash point detector and the temperature probe in a solid housing with a perfectly adjusted immersion depth
  • Memory for 1000 tests, 20 operators, 100 sample names
  • Statistical analysis (Min, Max, Mean, Repeatability)
  • Data handling via USB stick for import into MS Excel® or to LIMS

Convenient Operation

  • Test initiation by pre-installed standard test methods and abitlity to customize methods by 15 user-defined programs
  • Calibration protocol printable
  • Menu navigation by jog shuttle system with easy turn-and-push operation and color-coded LED indication for each operation mode
  • 5.7” color graphics display shows real-time measurement
  • Password protection

Customized User Flexibility

  • PC-software FPPNet (optional) for convenient remote handling and test data storage
  • Stainless steel or small-volume sample cup (optional)
  • Stainless steel sample temperature sensor Pt100
  • Bar code scanner or keyboard (optional)

Video Demo


View all Anton Paar’s products

Visit Anton Paar’s official website


Application rangeup to 405 °C (°C/°F selectable)
IgnitionGas and electric (interchangeable)
HeatingAccording to method or user-defined
StirringAccording to method or user-defined
CoolingBuilt-in forced air (fan)
Flash point detectionThermocouple
Sample temperaturePt100 glass probe
Sample temperature calibrationDynamic calibration against certified ASTM thermometer and offset capability with correction table (21 calibration points)
Barometric pressure correctionAutomatic correction
SafetyOverheat protection, automatic shut-off, fire-extinguishing system, password
Interfaces3x USB, 1x RS232, 1x LAN
Gas supplyTest flame: 50 mbar of propane or butane Fire extinguisher: 6 bar to 12 bar of nitrogen or carbon dioxide
Power supply115 V/230 V, 50 Hz/60 Hz, 1000 W
Dimensions230 mm x 410 mm x 460 mm (W x D x H)
Weight14 kg
  Standard Methods
  • ASTM D93 A+B+C
  • ISO 2719 A+B+C
  • JIS K 2265-3 A+B
  • IP 34 A+B
  • GOST R EN ISO 2719
